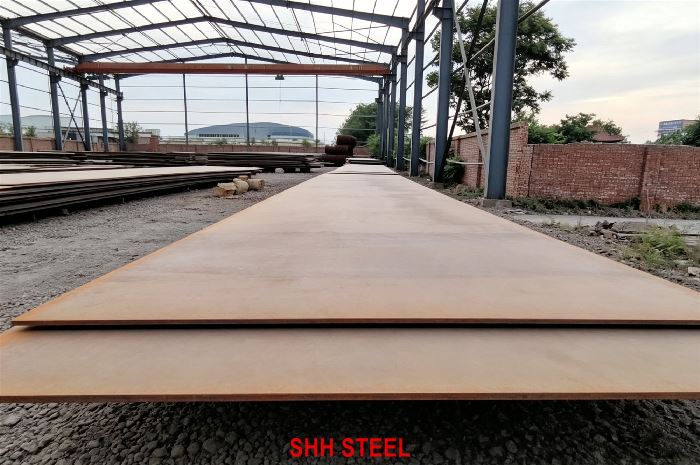

What is GB/T 713.4 06Ni7DR Steel?
06Ni7DR is the grade GB/T 713.4-2023 added when it replaced GB/T 24510-2017. The old 24510 book had 1.5Ni and did not carry this 7Ni name. The letters mean 06 = average carbon, Ni7 = about 7% nickel, DR = low-temperature vessel. Buyers search GB/T 713.4 06Ni7DR, 06Ni7DR 7Ni low temp vessel plate and 7Ni steel.
Yield is 550 MPa in the mid-thickness band and 540 MPa above that. Tensile is 680–820 MPa. Delivery is quenched and tempered or double-quenched and tempered. Impact specimens shall also meet lateral expansion not less than 0.64 mm. Residual magnetism shall not exceed 50 gauss. After heat treatment the plate is shot-blasted. Those last three rules sit with 06Ni9DR steel plate, not with 08Ni3DR steel plate. SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) for this grade.
Do not ship 08Ni3DR steel plate against 06Ni7DR. 08Ni3DR is 3.5Ni. Do not ship 07Ni5DR steel plate and call 5Ni the same as 7Ni. Do not ship 06Ni9DR steel plate and call 9Ni close. Do not ship GB/T 713.3 09MnNiDR steel plate, 16MnDR steel plate, 13MnNiDR steel plate, 15MnNiNbDR steel plate, 11MnNiMoDR steel plate, Q420DR steel plate or Q460DR steel plate. Those grades are low-alloy low-temperature plates, not 7Ni plate.
Do not ship GB/T 713.2 vessel plate against this page either. Q345R steel plate, Q245R steel plate, Q370R steel plate, Q420R steel plate, Q460R steel plate, 15CrMoR steel plate, 14Cr1MoR steel plate, 12Cr2Mo1R steel plate, 12Cr1MoVR steel plate, 12Cr2Mo1VR steel plate, 13MnNiMoR steel plate, 18MnMoNbR steel plate and 07Cr2AlMoR steel plate belong to a different part of GB/T 713.
If the inquiry is Japanese vessel plate, look at SPV235 steel plate, SPV315 steel plate, SPV355 steel plate, SPV410 steel plate or SPV450 steel plate. If the inquiry is German fine-grain plate, look at StE355 steel plate, WStE355 steel plate, TStE355 steel plate or EStE355 steel plate. None of those names replace 06Ni7DR.
Company scope: global steel mill sourcing partner – SHH STEEL.
Material Specification
| Specification Element | Requirement | SHH STEEL Compliance |
|---|---|---|
| Grade | GB/T 713.4 06Ni7DR | Confirmed |
| Product Specification | GB/T 713.4-2023 (replaces GB/T 24510-2017) | Applied |
| Status in 2023 book | Newly added grade | Confirmed |
| Service idea | 7Ni low-temperature vessels | Confirmed |
| Steel type | 7% nickel cryogenic-family vessel plate | Confirmed |
| Usual delivery | QT or Q+Q+T | Confirmed |
| Yield idea | 550 / 540 MPa by thickness | Confirmed |
| Tensile | 680–820 MPa | Confirmed |
| Extra mill rules | LE ≥0.64 mm, residual magnetism ≤50 G, shot blast | Confirmed |
| Supply role | Global steel mill sourcing partner | SHH STEEL |
| Markets | Americas, Europe, Middle East, Africa, Asia | FOB / CIF as ordered |
| Certification | EN 10204 3.1 or 3.2 / third-party | As ordered |
This plate sits in pressure vessel steel plates. Nickel comparisons belong on ASME SA203 and ASME SA662.
Chemical Composition
Heat analysis follows GB/T 713.4 Table 1. Product analysis follows GB/T 713.1. Write both on the PO if the destination file needs finished-plate chemistry.
Heat Analysis and Product Analysis — GB/T 713.4 06Ni7DR
| Element | Heat Analysis (%) | Product Analysis, when ordered (%) |
|---|---|---|
| Carbon (C), max | 0.08 | 0.10 |
| Silicon (Si) | 0.15 – 0.35 | 0.13 – 0.40 |
| Manganese (Mn) | 0.30 – 0.80 | 0.25 – 0.85 |
| Phosphorus (P), max | 0.008 | 0.011 |
| Sulfur (S), max | 0.004 | 0.006 |
| Nickel (Ni) | 6.50 – 7.50 | 6.40 – 7.60 |
| Molybdenum (Mo), max | 0.10 | 0.12 |
Nickel is about 7%. That is not 3.5Ni and not 9Ni. GB/T 713.4 treats 06Ni7DR separately from the Cr+Mo+Cu ≤0.50% note used on the other nickel grades. SHH STEEL reports heat analysis on every certificate and product analysis when the order names it. Density is about 7.87 g/cm³. Use the mill certificate weight if the tank calculation is tight.
Mechanical Properties
Tensile and Yield — GB/T 713.4 06Ni7DR
| Thickness (mm) | Yield min (MPa) | Tensile (MPa) |
|---|---|---|
| 5 – 30 | 550 | 680 – 820 |
| 30 – 50 | 550 | 680 – 820 |
| 50 – 80 | 540 | 680 – 820 |
| Density | 7.87 g/cm³ | 7.87 g/cm³ |
Elongation is commonly 18% min. Delivery is QT or Q+Q+T. Lateral expansion shall not be less than 0.64 mm. Do not quote 550 MPa yield on every thickness. Do not treat 680–820 MPa tensile as permission to stamp SA203 Gr.F or SA353. Those books are 3.5Ni and 9Ni.
Material Comparison
| Grade | Book | Service idea | Swap? |
|---|---|---|---|
| 08Ni3DR steel plate | GB/T 713.4 | 3.5Ni, −100 °C | No |
| 07Ni5DR steel plate | GB/T 713.4 | 5Ni | No |
| GB/T 713.4 06Ni7DR | GB/T 713.4 | 7Ni, this page | This page |
| 06Ni9DR steel plate | GB/T 713.4 | 9Ni, −196 °C | No |
| 09MnNiDR steel plate | GB/T 713.3 | 0.3–0.8Ni, −70 °C | No |
| 16MnDR steel plate | GB/T 713.3 | −40 °C low-alloy | No |
| Q345R steel plate | GB/T 713.2 | Room / elevated vessel | No |
| SPV355 steel plate | JIS G3115 | Japanese vessel | No |
| StE355 steel plate | DIN 17102 | German fine grain | No |
Equivalent Material Grades
| Designation | Standard / region | Notes |
|---|---|---|
| GB/T 713.4 06Ni7DR | GB/T 713.4-2023 | Name on this page; new in 2023 |
| SL7N590 | JIS G3127 | Closest JIS 7Ni |
| 08Ni3DR | GB/T 713.4 | 3.5Ni sister |
| 07Ni5DR | GB/T 713.4 | 5Ni sister |
| 06Ni9DR | GB/T 713.4 | 9Ni sister |
| SA203 Gr.A | SA-203 | 2.25Ni |
| SA203 Gr.B | SA-203 | 2.25Ni |
| SA203 Gr.D | SA-203 | 3.5Ni |
| SA203 Gr.E | SA-203 | 3.5Ni |
| SA662 Gr.B | SA-662 | Low-temp carbon |
| SA537 Cl.1 | SA-537 | Heat-treated carbon |
| SA537 Cl.2 | SA-537 | Higher-strength carbon |
| ASTM A36 steel plate | A36 | Structural |
7Ni Pressure-Vessel Service
Buyers pick 06Ni7DR when the file wants more nickel than 5Ni and does not want to jump to 9Ni LNG inner-tank plate. Strength sits with the 680–820 MPa family used on 06Ni9DR. Extra mill rules also sit with 9Ni: lateral expansion, residual magnetism and shot blast.
It is not an ASME Section VIII plate by default. An ASME file should name SA203 Gr.D, SA353 or SA553 only when that is the actual book. Dual marking is possible only when both books are met.
SHH STEEL supplies this plate to fabricators in the United States, Mexico, South America, Europe, the Middle East, Africa and Asia. Stainless inquiries belong on ASME SA240 or ASTM A240.
Weldability
06Ni7DR is 7Ni plate in the quenched-and-tempered condition. Qualify to the applicable code. ASME dual-name work uses ASME Section IX. Consumables must match 7Ni practice, not a 3.5Ni SA203 Gr.D procedure and not a 9Ni 06Ni9DR procedure copied without review. The fabricator owns the WPS. SHH STEEL can share mill heat data for that review.
Heat Treatment and Delivery Condition
Usual delivery from SHH STEEL is quenched-and-tempered or double-quenched-and-tempered GB/T 713.4 06Ni7DR. After heat treatment the plate is shot-blasted. Residual magnetism is checked and shall not exceed 50 gauss. Batches are made by heat-treatment piece, not by a 30 t melt lot used on 08Ni3DR.
If the vessel will see PWHT, say so. Test coupons then follow a simulated cycle. Plan about two months when 3.2 or extra NDE is on the order.
The certificate lists GB/T 713.4 06Ni7DR; heat number; heat analysis; product analysis when ordered; tensile to the correct thickness column; QT or Q+Q+T; impact; lateral expansion; residual magnetism. Certificates may be EN 10204 3.1 or EN 10204 3.2. UT to NB/T 47013.3 Class I is the GB default.
Dimensions
Usual supply range from SHH STEEL for 06Ni7DR 7Ni low temp vessel plate:
- Thickness: commonly 5 mm – 80 mm
- Width: 1500 mm – 3500 mm
- Length: 3000 mm – 12000 mm
Ship plate inquiries belong on shipbuilding steel plates or BV Rules. Weathering plate belongs on EN 10025-5 or Corten A/B. TMCP fine-grain structural belongs on EN 10025-4. QT structural belongs on EN 10025-6. Ordinary structural belongs on EN 10025-2 or JIS G3106.
Tolerances
Dimensional limits follow GB/T 713.1. Do not apply ASTM A36/A36M structural tolerances without writing them. UT to NB/T 47013.3 Class I is the GB default.
Supplementary Requirements
Charpy details. Temperature, energy, location, orientation and lateral expansion ≥0.64 mm.
Residual magnetism. GB default is not more than 50 gauss.
Shot blast. Required after heat treatment.
Product analysis. Add this when the destination file wants finished-plate chemistry.
Simulated PWHT. When the equipment will be stress-relieved.
NDE. UT Class I unless a tighter class is written.
Third-party. EN 10204 3.2 when written.
Applications
| Industry | Typical components |
|---|---|
| 7Ni low-temp vessels | GB/T 713.4 06Ni7DR shells |
| Cold-region and cryogenic tanks | 06Ni7DR courses |
| Separators and drums | 06Ni7DR plate from SHH STEEL |
| Dual-certified export | 06Ni7DR / SL7N590 when chemistry fits |
Other vessel comparisons: SA302 Gr.B, SA533 Type C Cl.1, SA517 Gr.P, SA738 Gr.C, SA516 Gr.70. Stainless inquiries belong on stainless steel products, JIS G4305 or AISI stainless.
Global Delivery & Markets
SHH STEEL is a global steel mill sourcing partner with mill partnerships in China. We supply ASTM, ASME, EN, DIN, JIS and GB steel to buyers outside a single region. Origin is mill-direct, China origin.
SHH STEEL has supplied steel plates to the USA, Mexico, Argentina, Peru, El Salvador, Spain, Netherlands, Germany, UAE, Saudi Arabia, South Africa, India, Thailand, Singapore, Vietnam, the Philippines, Japan and Korea.
Typical trade terms on this grade: FOB Shanghai, CIF Singapore, CIF Hamburg, CIF Callao, plus Houston, Rotterdam, Jebel Ali, Busan, Antwerp, Manzanillo, Barcelona and Yokohama.
Typical lead time:
- Ex-stock: about 5–7 days when 7Ni plate is in yard
- Mill rolling, standard QT: about 45 days
- Simulated PWHT, 3.2 or extra NDE: about 2 months
Why Choose SHH STEEL
SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin). On GB/T 713.4 06Ni7DR that means mill pricing, 06Ni7DR chemistry reported as heat analysis and as product analysis when ordered, recorded QT, tensile results to the correct thickness column, lateral expansion, residual magnetism, shot blast, 3.1 as standard and 3.2 when specified.
We keep the grade on the order. 06Ni7DR is not 08Ni3DR. 06Ni7DR is not 07Ni5DR. 06Ni7DR is not 06Ni9DR. 06Ni7DR is not SA203 Gr.E. If the drawing says 9Ni, we will not ship 7Ni and call nickel close.
Company scope: global steel mill sourcing partner – SHH STEEL.
FAQ
- What is 06Ni7DR steel plate?
- 06Ni7DR is a GB/T 713.4 7% nickel low-temperature pressure-vessel plate added in 2023. Yield is 550 MPa in the mid-thickness band and tensile is 680–820 MPa. Delivery is QT or Q+Q+T. Lateral expansion shall not be less than 0.64 mm. SHH STEEL supplies this plate as a global steel mill sourcing partner.
- Was 06Ni7DR in GB/T 24510-2017?
- No. GB/T 713.4-2023 deleted 1.5Ni and added 06Ni7DR.
- What is the equivalent of 06Ni7DR?
- The closest JIS comparison is SL7N590. Dual marking is possible only when both books are fully met.
- How is 06Ni7DR different from 07Ni5DR and 06Ni9DR?
- 07Ni5DR is 5Ni at 530–700 MPa. 06Ni7DR is 7Ni at 680–820 MPa with mandatory residual magnetism and shot blast. 06Ni9DR is 9Ni for −196 °C.
- Does 06Ni7DR need residual magnetism and shot blast?
- Yes. GB/T 713.4 requires residual magnetism not more than 50 gauss and shot blast after heat treatment, same family rule as 06Ni9DR.
- Can SHH STEEL ship 06Ni7DR to Singapore, Germany or Peru?
- Yes. SHH STEEL has supplied plates to Singapore, Germany, Peru, Korea, Japan, the USA, Europe, the Middle East, India, South Africa and Mexico.
- What is the delivery time for 06Ni7DR?
- Ex-stock about 5–7 days when 7Ni plate is in yard. Standard QT mill rolling about 45 days. Simulated PWHT or 3.2 inspection about 2 months.
Conclusion
GB/T 713.4 06Ni7DR Steel Plate is a 2023-added Chinese 7% nickel low-temperature pressure-vessel plate at the 550 MPa yield step, 680–820 MPa tensile, QT or Q+Q+T delivery, with lateral expansion and residual-magnetism rules. Whether the inquiry says GB/T 713.4 06Ni7DR or 06Ni7DR 7Ni Low Temp Vessel Plate, SHH STEEL as a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) supplies plate with 06Ni7DR chemistry, heat and product analysis when ordered, recorded QT, and EN 10204 3.1 or 3.2 certification.
SHH STEEL supplies GB/T 713.4 06Ni7DR 7Ni Low Temp Vessel Plate to the USA, Mexico, South America, Europe, the Middle East, Africa and Asia for work that actually names this grade. FOB Shanghai / CIF Singapore / Hamburg / Callao.
Contact SHH STEEL for mill rolling, stock inquiry, QT, 3.2 inspection or a quotation.
