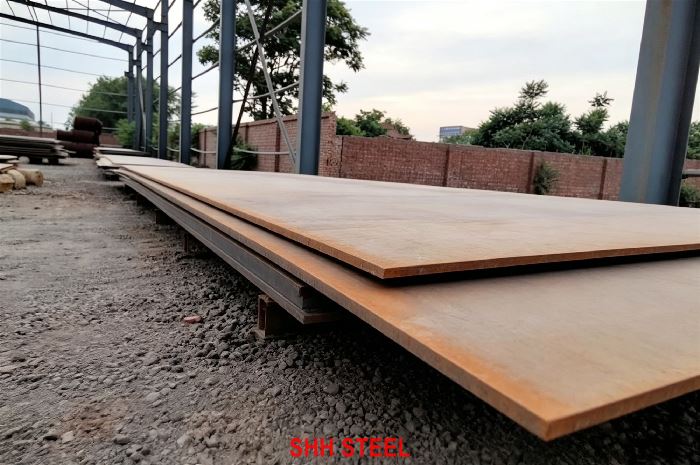

GB/T 713 15CrMoR Steel Plate | 15CrMoR Cr-Mo Vessel Plate

GB/T 713 15CrMoR, also written GB/T 713.2 15CrMoR and 15CrMoR steel plate, is a Chinese 1.25Cr-0.5Mo boiler and pressure-vessel plate. Current product rules sit in GB/T 713.2-2023. Buyers still search GB/T 713. The name itself is the search term: about 0.15% C, Cr, Mo, and R for vessel. Yield is 295 MPa at 6–60 mm. Tensile is 450–590 MPa. Delivery is normalizing plus tempering. Tempering shall not be lower than 650 °C. Impact is commonly 20 °C, 47 J. SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) for this grade.

A purchase order that only says “CrMo vessel plate” is incomplete. Write GB/T 713 15CrMoR. Do not ship Q345R against a 15CrMoR drawing. Do not ship 14Cr1MoR against a 15CrMoR drawing. Do not ship SA387 Gr.12 Cl.2 and stamp 15CrMoR because tensile looks close. Dual marking is possible only when both books are fully met.

This page is not carbon Q245R / Q345R. It is not Mn-Mo-Nb 18MnMoNbR. It is not 2.25Cr-1Mo 12Cr2Mo1R. It is not QT alloy under ASME SA543.

Company scope: global steel mill sourcing partner – SHH STEEL.

This plate sits in pressure vessel steel plates and ASME SA387 comparison work. ASME comparisons belong on ASME SA387 Grade 12, not as automatic substitutes.

GB/T 713 15CrMoR heat analysis follows GB/T 713.2 Table 1. Product analysis follows the permitted deviations in GB/T 713.1. Write “heat + product analysis” on the order if both are required.

Heat Analysis and Product Analysis — GB/T 713 15CrMoR

Chromium and molybdenum are required. That is the difference versus Q345R and versus 18MnMoNbR. Do not treat 14Cr1MoR chemistry as 15CrMoR. 14Cr1MoR is the next Cr-Mo step. SHH STEEL reports heat analysis on every certificate and product analysis when the order names it.

Yield starts at 295 MPa at 6–60 mm and falls as thickness rises.

Tensile and Yield — GB/T 713 15CrMoR

Elongation is commonly 19% min. Impact is 20 °C, 47 J. Elevated-temperature proof stress is published for this grade. Write the design temperature on the order if the vessel file needs those values.

Do not treat 450–590 MPa tensile as permission to stamp SA387 Gr.12 Cl.1 or SA387 Gr.12 Cl.2 without checking yield, impact, PWHT and Class.

These names are project-comparison grades. They are not automatic substitutes.

ASME SA515 and ASME SA203 are not 15CrMoR.

GB/T 713 15CrMoR is selected for boilers, heat exchangers, hydrogen service shells and other pressure equipment that name the Chinese 1.25Cr-0.5Mo vessel book. Chromium and molybdenum support elevated-temperature strength and oxidation resistance. It is not automatically an ASME Section VIII plate. If the vessel is ASME, the drawing should name SA387 Gr.12 Cl.2 or SA387 Gr.11 Cl.2.

SHH STEEL supplies this plate to fabricators in the United States, Mexico, South America, Europe, the Middle East, Africa and Asia. It is not nickel low-temp plate like SA203 Gr.D. It is not QT Ni-Cr-Mo like SA543 Type B Cl.1. It is not 2.25Cr-1Mo like SA387 Gr.22 Cl.2. Stainless inquiries belong on ASME SA240 or ASTM A240.

15CrMoR is killed 1.25Cr-0.5Mo vessel plate. Welding is production welding, and Code welding when the equipment is a vessel.

Qualify procedures to the applicable code. For ASME work that happens to use a dual-named plate, use ASME Section IX. Consumables should match the Cr-Mo content, typically 1.25Cr-0.5Mo filler, not a plain Q345R procedure and not a SA387 Gr.22 Cl.2 2.25Cr-1Mo procedure. Preheat and PWHT follow thickness and hydrogen control. The fabricator owns the WPS. SHH STEEL can share mill heat data for that review.

Usual delivery from SHH STEEL is normalized-and-tempered GB/T 713 15CrMoR. Tempering shall not be lower than 650 °C. As-rolled shipment is not the default.

If the vessel will see PWHT, test coupons shall follow a simulated cycle when the order names it. This is not the carbon normalize route used on Q345R and not the Mn-Mo-Nb N+T route used on 18MnMoNbR. Special heat treatment, extra simulation or third-party hold points add time. Plan about two months when those extras are on the order.

The certificate lists GB/T 713 15CrMoR; heat number; heat analysis; product analysis when ordered; tensile results to the correct thickness column; N+T and tempering temperature; impact at 20 °C or the named temperature; elevated-temperature proof stress when ordered. Certificates may be EN 10204 3.1 or EN 10204 3.2. Dual marking to SA387 Gr.12 Cl.2 is available only when both books are met.

Usual supply range from SHH STEEL for 15CrMoR Cr-Mo vessel plate:

• Thickness: commonly 6 mm – 200 mm. Confirm any request above 150 mm against mill capability
• Width: 1500 mm – 4000 mm
• Length: 3000 mm – 12000 mm
• Cut-to-length plates and nest sizes inside those limits

Ship plate inquiries belong on shipbuilding steel plates or BV Rules. Weathering plate belongs on EN 10025-5 or Corten A/B. TMCP fine-grain structural belongs on EN 10025-4. QT structural belongs on EN 10025-6. Ordinary structural belongs on EN 10025-2 or JIS G3106.

Dimensional limits follow GB/T 713.1 and the mill rolling standard named on the order. Do not apply ASTM A36/A36M structural tolerances to a Chinese vessel plate without writing them. UT to GB/T 2970, JB/T 4730, EN 10160 or ASTM A435 / A577 / A578 is added when the order names it.

Most export GB/T 713 15CrMoR orders add extras. SHH STEEL does not assume them.

Charpy details. Temperature, energy, location and orientation. GB default is commonly 20 °C / 47 J.

Product analysis. Add this when the destination file wants finished-plate chemistry.

Elevated-temperature proof stress. Design temperature as written.

Simulated PWHT. When the equipment will be stress-relieved.

NDE. UT per the named method.

Z-direction. Z15 / Z25 / Z35 when the drawing names it.

HIC / NACE / SSC / hydrogen service. Only when written.

Third-party. EN 10204 3.2, with inspectors arranged for US, Mexican, European, Middle East, Japanese or Korean documentation packages.

Stainless inquiries belong on stainless steel products, JIS G4305 or AISI stainless. Other vessel comparisons: SA203 Gr.B, SA302 Gr.B, A516 Grade 70, SA533 Type C Cl.1, SA517 Gr.P, SA738 Gr.C.

SHH STEEL is a global steel mill sourcing partner with mill partnerships in China. We supply ASTM, ASME, EN, DIN, JIS and GB steel to buyers outside a single region. Origin is mill-direct, China origin.

SHH STEEL has supplied steel plates to:

• North America: USA, Mexico
• South America: Argentina, Peru and other South American ports
• Central America: El Salvador
• Europe: Spain, Netherlands, Germany and surrounding ports
• Middle East: UAE, Saudi Arabia and nearby Gulf ports
• Africa: South Africa
• South / Southeast Asia: India, Thailand, Singapore, Vietnam, Philippines
• East Asia: Japan, Korea

Typical trade terms: FOB Shanghai, CIF Houston, CIF Rotterdam, CIF Jebel Ali, plus Manzanillo, Callao, Buenos Aires, Barcelona, Durban, Laem Chabang, Ho Chi Minh, Manila, Mumbai, Yokohama and Busan.

Typical lead time for GB/T 713 15CrMoR:

• Ex-stock: about 5–7 days
• Mill rolling, standard N+T: about 45 days
• Simulated PWHT, 3.2 or extra NDE: about 2 months

Documents travel with the cargo: mill certificate, packing list, commercial invoice, bill of lading, and EN 10204 3.1 or 3.2 as ordered. Third-party inspection can be arranged before loading. Packing is seaworthy, with edge protection and marking in English as specified on the order.

SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin). We supply ASTM / ASME / EN / DIN / JIS / GB steel to the USA, Mexico, South America, Europe, the Middle East, Africa and Asia. On GB/T 713 15CrMoR that means mill pricing, 15CrMoR chemistry reported as heat analysis and as product analysis when ordered, recorded N+T with temper ≥650 °C, tensile results to the correct thickness column, 295 MPa yield at 6–60 mm, 3.1 as standard and 3.2 when specified.

We keep the grade on the order. 15CrMoR is not Q345R. 15CrMoR is not 14Cr1MoR. 15CrMoR is not 12Cr2Mo1R. 15CrMoR is not SA387 Gr.12 Cl.2 unless both books are met. 15CrMoR is not SA387 Gr.22 Cl.2.

Company scope: global steel mill sourcing partner – SHH STEEL.

GB/T 713 15CrMoR Steel Plate is Chinese 1.25Cr-0.5Mo boiler and pressure-vessel plate at the 295 MPa yield step, 450–590 MPa tensile at 6–60 mm, N+T delivery with temper not lower than 650 °C. Whether the inquiry says GB/T 713 15CrMoR, GB/T 713.2 15CrMoR or 15CrMoR Cr-Mo Vessel Plate, SHH STEEL as a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) supplies plate with 15CrMoR chemistry, heat and product analysis when ordered, recorded N+T, and EN 10204 3.1 or 3.2 certification.

SHH STEEL supplies GB/T 713 15CrMoR Cr-Mo Vessel Plate to the USA, Mexico, South America, Europe, the Middle East, Africa and Asia for work that actually names this grade. FOB Shanghai / CIF Houston / Rotterdam / Jebel Ali.

Contact SHH STEEL for mill rolling, stock inquiry, N+T, dual SA387 Gr.12 marking when eligible, 3.2 inspection or a quotation.
