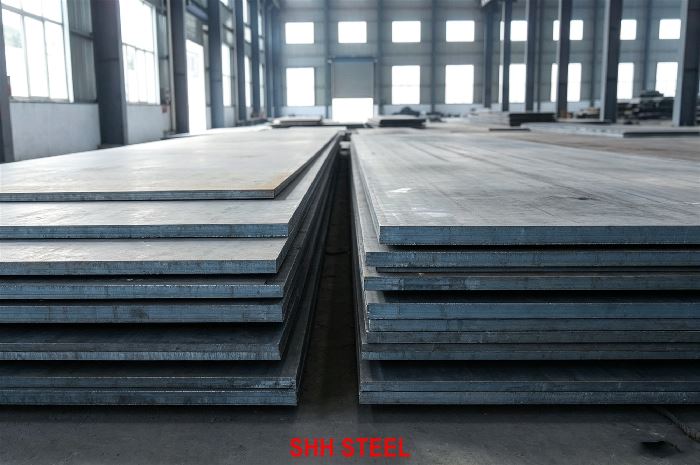

DIN 17102 StE460 Steel Plate | StE460 Fine Grain Steel

DIN 17102 StE460, also written StE 460, STE460, DIN17102 StE460 and StE460 steel plate, is a weldable normalized fine-grain structural steel under DIN 17102. StE means the basic / room-temperature quality. Yield in the thin band is 460 MPa. Tensile at ≤70 mm is typically 570–720 MPa. This is the DIN 17102 line that conversion tables map to P460N (EN 10028-3) and S460N (EN 10025-3). It is not StE420 and not StE500. SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) for this grade. Plate is produced to DIN 17102 and shipped to buyers in the USA, Europe, Middle East and Southeast Asia.

A purchase order that only says “460 fine grain” or “P460N equivalent” is incomplete if the drawing still names DIN. Write DIN 17102 StE460. Do not ship StE420 against a StE460 drawing. Do not ship StE500 against a StE460 drawing without a written change.

DIN 17102 is a legacy specification. New European structural work usually names S460N / S460NL under EN 10025-3. New pressure work usually names P460N / P460NH / P460NL1. Replacement projects still name StE460 when an old German calculation or mill qualification stays on DIN.

This page is not DIN 17100 St52-3. DIN 17100 is ordinary structural steel. DIN 17102 is fine-grain, killed, normally normalized. This page is not SA516 Gr.70. Grade 70 is ASME carbon vessel plate at 260 MPa yield. StE460 is 460 MPa yield fine-grain plate. It is not ASTM A36 steel plate. It is not QT alloy under ASME SA387 or ASME SA543.

Company scope: global steel mill sourcing partner – SHH STEEL.

This plate sits in structural steel plates and high strength low alloy plates. Vessel comparisons belong next to pressure vessel steel plates and ASME SA516, not as automatic substitutes.

DIN 17102 StE460 / StE 460 uses a manganese and microalloy band that supports the 460 MPa yield step. Product analysis is slightly wider than heat analysis.

Heat Analysis and Product Analysis — DIN 17102 StE460 (typical limits)

StE420 uses a similar residual idea at a lower yield step. TStE460 and EStE460 tighten P and S. If the order dual-names P460N, residuals must also fit EN 10028-3 of the named edition. SHH STEEL reports heat analysis on every certificate and product analysis when the order names it.

Yield starts at 460 MPa at ≤16 mm and falls as thickness rises.

Tensile and Yield — DIN 17102 StE460 (typical published bands)

Do not quote 460 MPa yield on an 80 mm plate. Do not treat 570–720 MPa tensile as permission to stamp SA516 Gr.70, SA737 Gr.C or SA738 Gr.B.

Impact is the reason buyers pick DIN 17102 instead of DIN 17100. StE460 is the basic quality. If the drawing names −20 °C or −50 °C, the order may actually need TStE460 or EStE460, or a dual EN name such as S460NL / P460NL1. Write the test temperature on the purchase order.

Same 460 MPa yield idea. Different impact and, on T/E, tighter residuals. SHH STEEL will not ship StE460 against a TStE460 impact temperature without a written change.

SA203 Gr.A, SA285 Gr.C and SA299 Gr.A are vessel plates. None of them is StE460.

DIN 17102 StE460 / StE 460 is selected for welded structures that need fine-grain toughness at the 460 MPa yield step: frames, tanks, machinery and some pressure equipment still calculated to the old German book. It is the practical DIN counterpart to P460N / S460N. It is not automatically a Section VIII plate. If the vessel is ASME, the drawing should name an ASME or ASTM grade such as SA516 Gr.70, SA537 Cl.1 or SA738 Gr.A.

SHH STEEL supplies this plate to fabricators in the United States, Europe, the Middle East and Southeast Asia. It is not nickel low-temp plate like SA203 Gr.D or SA203 Gr.E. It is not QT Ni-Cr-Mo like SA543 Type B Cl.1. It is not Cr-Mo like SA387 Gr.22 Cl.2. Stainless inquiries belong on ASME SA240 or ASTM A240.

StE460 is killed fine-grain C-Mn-microalloy steel at a higher strength step than StE420. Welding is production welding, and Code welding when the equipment is a vessel.

Qualify procedures to the applicable code. For ASME work that happens to use a dual-named plate, use ASME Section IX. Consumables should match the 570–720 MPa tensile band, not a SA387 Gr.12 Cl.2 Cr-Mo procedure and not a QT procedure from SA517 Gr.F. Preheat follows thickness and hydrogen control. The fabricator owns the WPS. SHH STEEL can share mill heat data for that review.

Usual delivery from SHH STEEL is normalized DIN 17102 StE460 / StE 460 plate. Fine-grain practice and normalize are the product idea. As-rolled shipment is a special agreement.

If the vessel or structure will see PWHT, test coupons shall follow a simulated cycle when the order names it. This is not the QT route used on SA738 Gr.B or SA737 Gr.C. Special heat treatment, extra simulation or third-party hold points add time. Plan about two months when those extras are on the order.

The certificate lists DIN 17102 StE460 (and StE 460 if requested); heat number; heat analysis; product analysis when ordered; tensile results to the correct thickness column; normalize statement; impact when ordered. Certificates may be EN 10204 3.1 or EN 10204 3.2. Dual marking to S460N or P460N is available only when chemistry, tensile and impact all fit the named EN edition.

Usual supply range from SHH STEEL for StE460 fine grain steel:

• Thickness: commonly 6 mm – 150 mm. Confirm any request above 150 mm against mill capability
• Width: 1500 mm – 4000 mm
• Length: 3000 mm – 12000 mm
• Cut-to-length plates and nest sizes inside those limits

Ship plate inquiries belong on shipbuilding steel plates or BV Rules. Weathering plate belongs on EN 10025-5 or Corten A/B. TMCP fine-grain structural belongs on EN 10025-4. QT structural belongs on EN 10025-6. Ordinary structural belongs on EN 10025-2 or JIS G3106.

Dimensional limits follow the mill rolling standard named on the order, commonly EN 10029 for plate when the buyer is in Europe. Do not apply ASTM A36/A36M structural tolerances to a DIN fine-grain plate without writing them. UT to EN 10160 or ASTM A435 / A577 / A578 is added when the order names it.

Most export DIN 17102 StE460 / StE 460 orders add extras. SHH STEEL does not assume them.

Charpy details. Temperature, energy, location and orientation. If the temperature is −40 °C or −50 °C, confirm whether the grade should be TStE460 or EStE460.

Product analysis. Add this when the destination file wants finished-plate chemistry, not only ladle chemistry.

Simulated PWHT. When the equipment will be stress-relieved.

NDE. UT per the named method.

Z-direction / through-thickness testing. When the drawing names Z15 / Z25 / Z35.

Third-party. EN 10204 3.2, with inspectors arranged for US, European or Middle East documentation packages.

These names are project-comparison grades. They are not automatic substitutes.

ASME SA515 and ASME SA662 are not StE460.

Stainless inquiries belong on stainless steel products, JIS G4305 or AISI stainless. Other vessel comparisons: SA203 Gr.B, SA302 Gr.B, A516 Grade 70, SA533 Type C Cl.2, SA517 Gr.P, SA738 Gr.C.

SHH STEEL is a global steel mill sourcing partner with mill partnerships in China. We supply ASTM, ASME, EN, DIN and JIS steel to the USA, Europe, Middle East and Southeast Asia. Origin is mill-direct, China origin. We do not treat DIN 17102 StE460 as an Asia-only stock item. Inquiry packages are written for fabricators and EPC buyers in Houston, Rotterdam, Antwerp, Jebel Ali, Dammam, Singapore and surrounding ports.

Typical trade terms:

• FOB Shanghai
• CIF Houston
• CIF Rotterdam
• CIF Jebel Ali
• Other CIF / CFR ports on request (Los Angeles, New York, Hamburg, Genoa, Jeddah, Mundra, Ho Chi Minh)

Typical lead time for DIN 17102 StE460 / StE 460:

• Ex-stock / ready plate: about 5–7 days after order confirmation, subject to actual warehouse size and cutting
• Mill rolling, standard normalize: about 45 days
• Special heat treatment, simulated PWHT, 3.2 hold or extra NDE: about 2 months

Documents travel with the cargo: mill certificate, packing list, commercial invoice, bill of lading, and EN 10204 3.1 or 3.2 as ordered. Third-party inspection can be arranged before loading for US, European or Middle East projects. Packing is seaworthy, with edge protection and marking in English as specified on the order.

If the buyer needs dual S460N or P460N marking for a European file, say so on the inquiry. If the buyer needs a PED / 3.2 file, say so on the inquiry. Do not assume a domestic Chinese certificate format will pass at destination.

SHH STEEL is a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin). We supply ASTM / ASME / EN / DIN / JIS steel to the USA, Europe, the Middle East and Southeast Asia. On DIN 17102 StE460 / StE 460 that means mill pricing, StE460 chemistry reported as heat analysis and as product analysis when ordered, recorded normalize, tensile results to the correct thickness column, 460 MPa yield in the thin band, 3.1 as standard and 3.2 when specified. Trade terms include FOB Shanghai and CIF Houston / Rotterdam / Jebel Ali.

We keep the grade on the order. StE460 is not StE420. StE460 is not StE500. StE460 is not TStE460. DIN 17102 is not DIN 17100. StE460 is not SA516 Gr.70. StE460 is not SA387 Gr.22 Cl.2. If the drawing names 500 MPa, we will not ship StE460 and call it close.

Company scope: global steel mill sourcing partner – SHH STEEL.

DIN 17102 StE460 Steel Plate, also searched as StE 460, STE460 and DIN17102 StE460, is weldable normalized fine-grain steel under DIN 17102 at the 460 MPa yield step, typically 570–720 MPa tensile at ≤70 mm, and the usual DIN counterpart to P460N / S460N. Whether the inquiry says DIN 17102 StE460, StE 460 or StE460 steel plate, SHH STEEL as a global steel mill sourcing partner and steel manufacturer & exporter (mill-direct, China origin) supplies plate with StE460 chemistry, recorded normalize, and EN 10204 3.1 or 3.2 certification.

SHH STEEL supplies DIN 17102 StE460 / StE460 Fine Grain Steel to the USA, Europe, the Middle East and Southeast Asia for work that actually names this grade. FOB Shanghai / CIF Houston / Rotterdam / Jebel Ali.

Contact SHH STEEL for mill rolling, stock inquiry, dual S460N or P460N marking when eligible, impact testing, 3.2 inspection or a quotation.
