CCS F40 / FH40 Shipbuilding Steel Plate

Technical Reviewer: Jack | SHH STEEL Material Solutions Department · Updated: 2026-10-27

Arctic and polar service under CCS often calls for CCS F40 / FH40 (CCS F40 / FH40): higher-strength hull plate with −60 °C toughness and the tighter FH chemistry column of UR W11. Write F40 / FH40 on the PO; do not drop the letter or the dual form. Strength level 40 means minimum yield 390 N/mm², tensile 510–650 N/mm² and elongation 20 % min. (A5). The letter FH (short F) fixes Charpy V-notch testing at −60 °C. GB 712 Grade FH40 covers the same chemistry/tensile band as a Chinese product standard; CCS class work still needs the CCS F40 / FH40 stamp, not GB 712 alone. In commercial enquiries it is called CCS F40 / FH40 or CCS F40 / FH40 shipbuilding steel plate.

Equivalent grades: CCS F40 / FH40 ≈ ASTM A131 Grade FH40 ≈ ABS FH40 ≈ DNV NV F40 ≈ LR FH40 ≈ BV FH40 ≈ NK KF40 ≈ KR RF40 ≈ RINA FH40 ≈ GB 712 Grade FH40 (all class-approved, stamped by the issuing society).

CCS F40 / FH40 is selected when scantlings need the higher yield of the 40 band and the material class assigns −60 °C toughness. Ordinary-strength CCS Grade A–E stay at 235 N/mm² yield and cannot replace F40/FH40 without a drawing change. Within the 40 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C; within the FH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

Plates that pass mill tests under CCS survey are die-stamped or stencilled CCS F40, CCS FH40 or CCS F40 / FH40 (plus Z or U where through-thickness or ultrasonic requirements apply) and are supplied with a mill certificate the CCS Surveyor endorses. SHH STEEL supplies CCS F40 / FH40 from Chinese mills that hold CCS works approval for the grade, from stock in common sizes or from a mill rolling cycle, with CCS survey arranged at the mill.

Size range. Common market thicknesses for F40/FH40 are about 6–80 mm (heavier plates available as per mill approval), widths 1500–3500 mm. Exact maximum thickness for a given delivery condition is as per standard and mill certificate / CCS works approval. Ask for confirmation above 100 mm.

Product (check) analysis column: CCS Rules for Materials and Welding specify heat (ladle) limits; no numeric product-analysis tolerance is tabulated in the rule text reviewed, so product (check) limits are agreed on the order or taken from the approved mill specification and certificate.

Source: IACS UR W11 higher-strength chemistry tables (ladle samples) — the chemistry China Classification Society applies to CCS F40 / FH40 via CCS Rules for Materials. The same alloy set appears in GB 712 for Grade FH40; CCS survey is what turns the plate into class steel. AH/DH/EH share one chemistry column; FH is tighter on C, P, S and adds N control with higher Ni allowance. Toughness is differentiated by impact temperature and supply routes, not by separate C/Mn caps within AH/DH/EH. Product (check) analysis numeric tolerances are not tabulated in UR W11; when required, agree tolerances at enquiry. TMCP steels must also meet the applicable Ceq / Pcm limits on the mill approval — ask for Ceq on the certificate.

Alternative flat-specimen elongations by thickness (indicative UR W11 / industry table for strength 40):

Same tensile band applies to A/AH, D/DH, E/EH and F/FH 40; only impact temperature and chemistry group (FH vs AH/DH/EH) change across the letter.

Source: IACS UR W11 impact table for higher-strength Grade FH40 (full-size; either direction acceptable unless specified). Energies rise with thickness — a 60 mm plate must meet higher values than a 20 mm plate at the same −60 °C. Condition of supply and impact lot size depend on grain-refining practice and thickness (AR/CR/N/TM/QT as permitted). For TMCP F40/FH40, respect Ceq caps ≈ 0.40 % (t≤50) / 0.42 % (50

China Classification Society applies IACS UR W13 thickness tolerances unless the PO states otherwise (often 0.3 mm minus class — confirm on PO; see UNCERTAIN). Plus/flatness/width/length per agreed standard (ASTM A6, EN 10029 or GB/T 709). Surface quality per EN 10163 or equivalent accepted by CCS; state primer/surface class on receipt if needed.

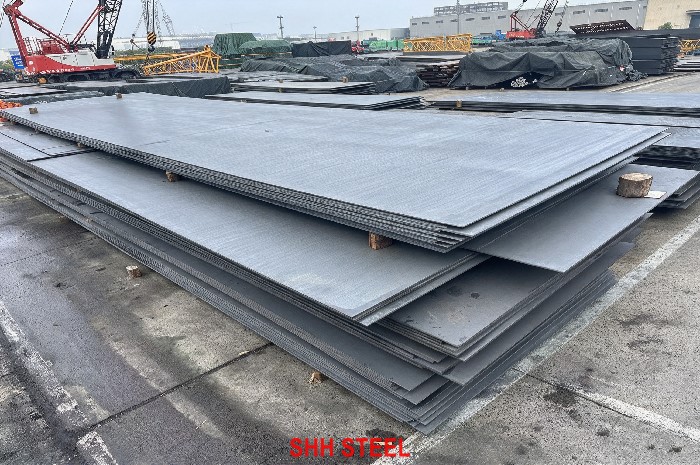

Quantities are approximate and change daily (indicative — confirm before booking); all stock plates carry CCS F40 / FH40 marking and CCS-endorsed mill certificates when sold as CCS class plate. Sizes outside the table (for example 3000 mm width, 60–100 mm thickness, or fixed lengths for a cutting plan) are produced in the next mill rolling cycle, typically 3–6 weeks including CCS survey. Send your size list and we will reply with what is in stock and what must be rolled.

Packing. Plates are bundled by size with steel strapping, marked with heat number, grade and CCS stamp, and shipped in containers (up to about 11.8 m) or break bulk for longer plates.

These are comparisons, not substitutions. Multi-class stamps (CCS + ABS / DNV / LR / BV) require joint survey before rolling. Other CCS siblings in the 40 band are linked via CCS until each product page is live.

Pick F40/FH40 when the drawing specifies higher-strength grade FH40 (or the dual commercial form F40 / FH40). Do not substitute ordinary Grade A/B unless the designer recalculates scantlings — yield differs (390 vs 235). Within the 40 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C. Within the FH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

For yields above 390 N/mm² China Classification Society / IACS move to extra-high strength (UR W16 naming — CCS uses AH420…FH690 with H, matching DNV-style W16 names, not BV’s A420 form).

When CCS CCS F40 / FH40 is the right choice: typical uses are low-temperature service: Arctic and polar-class hulls, ice belts and offshore units in cold regions where −60 °C toughness is specified. The Charpy temperature (−60 °C) is fixed by the letter, and the strength by the number (ReH 390 N/mm²). Pick the strength from the scantling calculation and the letter from the material class and design temperature on the approved drawing.

Typical uses: low-temperature service: Arctic and polar-class hulls, ice belts and offshore units in cold regions where −60 °C toughness is specified; weight-saving vs ordinary-strength plate in large tankers, bulkers and container ships built to CCS class. See offshore platform steel plates when primary offshore grades apply.

Welding: higher-strength hull steels need approved higher-strength consumables matched to −60 °C weld-metal toughness; preheat and heat input follow the approved WPS and often track Ceq/Pcm from the mill certificate. TMCP F40/FH40 must respect the Ceq caps noted above. Cutting by oxy-fuel/plasma/laser is routine; thick FH plate may need hydrogen control — follow mill recommendations.

Processing notes for CCS F40 / FH40: cold forming is routine within normal shipyard radii. Line heating and fairing of TMCP plate should stay within the temperature limits recommended by the mill, because overheating can reduce the strength gained in controlled rolling. Check the delivery condition on the certificate before planning hot forming.

Every plate is tested and marked at the mill under China Classification Society survey; the mill certificate lists heat number, ladle chemistry, Ceq where applicable, tensile results (ReH ≥ 390 N/mm², Rm 510–650 N/mm², A ≥ 20 %), Charpy at −60 °C, delivery condition and plate numbers, endorsed by the Surveyor. Optional EN 10204 3.2, UT (U), Z-direction, multi-class with ABS/DNV/LR/BV.

On receipt: verify CCS F40 / FH40 (or CCS F40 / CCS FH40) stamp, −60 °C impact data, energies for the delivered thickness band, thickness within UR W13 / PO tolerance, CCS endorsement present — not a GB 712-only stamp.

Charpy acceptance for CCS F40 / FH40 by thickness (IACS UR W11; actual results as per standard and mill certificate):

If UT or 3.2 was ordered, check the UT report and inspector’s plate list as well.

• Ordering “CCS 40” without the letter (FH/…) — toughness class missing
• Writing only F40 or only FH40 without clarifying CCS class — use dual F40 / FH40 or CCS F40 / FH40 on the PO
• Accepting ordinary-strength Grade A/B certificates for a F40/FH40 PO
• Accepting GB 712 Grade FH40 alone without CCS Surveyor endorsement
• Ignoring TMCP Ceq caps on TM plate
• FH chemistry (tighter P/S, N) not checked when the PO says FH
• Coil-cut plate without coil approval
• Missing CCS endorsement on the MTC
• Writing DNV NV F40 or LR/FH40 on a CCS-class PO without arranging that society’s survey

Write dual grade (F40 / FH40), delivery condition, impact temperature and certificate type into the PO.

Specify CCS F40 / FH40 (CCS F40 / FH40), delivery condition (AR/CR/N/TM/QT as applicable), thickness × width × length × qty, Z/U, multi-class, certificate type, port. Send to SHH STEEL.

Sample PO line: “Steel plate to China Classification Society Rules for Materials, Grade F40 / FH40 (CCS F40 / FH40), delivery condition [AR/CR/N/TM/QT], 20 × 2500 × 12000 mm, 30 pcs, marked CCS F40 / FH40, certificate endorsed by CCS Surveyor, EN 10204 3.2 [if required], UT [if required], CIF [port].”

CCS F40 / FH40 / CCS F40 / FH40 is higher-strength hull steel under China Classification Society Rules for Materials and IACS UR W11: yield 390 N/mm², tensile 510–650 N/mm², Charpy at −60 °C, marking CCS F40 / FH40. Both commercial forms F40 and FH40 name the same grade. GB 712 Grade FH40 is the related product standard — not a substitute for the CCS stamp. Lock on the order: delivery condition, impact lot size, TMCP Ceq if TM, product analysis if needed, multi-class and 3.2.

SHH STEEL supplies CCS F40 / FH40 plate rolled by Chinese mills that hold China Classification Society works approval for the grade, so every plate carries the CCS F40 / FH40 stamp and a Surveyor-endorsed certificate traceable to its heat. Common thicknesses are available from stock; other sizes are scheduled into the mill rolling cycle with CCS survey arranged at the mill. On request we add EN 10204 3.2 certificates with third-party witness (TÜV, SGS, LR or another agency) and joint certification with ABS, DNV, LR, BV, NK, KR or RINA.

We accept T/T or L/C payment, with inspection before the balance is paid. Small quantities in several sizes, or CCS F40 / FH40 mixed with CCS Grade A/B/D/E or other A–FH sizes, can be combined in one container. A dedicated coordinator sends production and shipping updates with photos, and our own workshop cuts to size, bevels, drills and machines plates before shipment so they arrive ready for fabrication.

Request a quotation: send SHH STEEL the grade (CCS F40 / FH40 / CCS F40 / FH40), thickness, width, length, quantity per size and destination port, plus any multi-class, Z/U or 3.2 certificate requirement. We reply with price, available stock and lead time.
