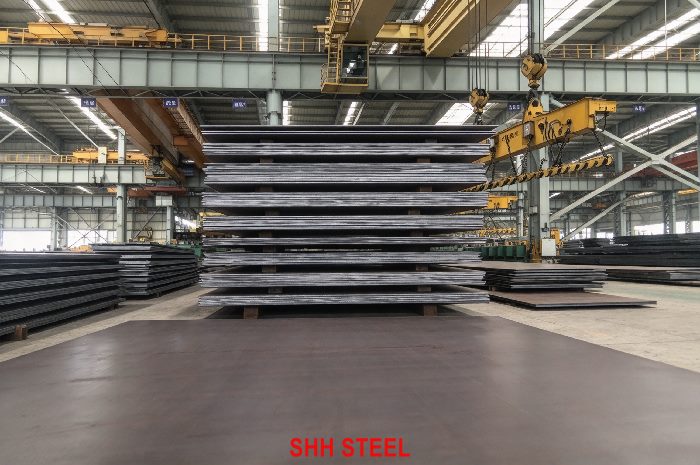

CCS E36 / EH36 Shipbuilding Steel Plate

Technical Reviewer: Jack | SHH STEEL Material Solutions Department · Updated: 2026-10-27

For cold-route and special-category scantlings, China Classification Society specifies CCS E36 / EH36 (CCS E36 / EH36) — higher-strength plate with −40 °C Charpy under CCS Materials / UR W11. Commercial traffic uses both E36 and EH36; they are the same grade. Strength level 36 means minimum yield 355 N/mm², tensile 490–630 N/mm² and elongation 21 % min. (A5). The letter EH (short E) fixes Charpy V-notch testing at −40 °C. GB 712 Grade EH36 covers the same chemistry/tensile band as a Chinese product standard; CCS class work still needs the CCS E36 / EH36 stamp, not GB 712 alone. In commercial enquiries it is called CCS E36 / EH36 or CCS E36 / EH36 shipbuilding steel plate.

Equivalent grades: CCS E36 / EH36 ≈ ASTM A131 Grade EH36 ≈ ABS EH36 ≈ DNV NV E36 ≈ LR EH36 ≈ BV EH36 ≈ NK KE36 ≈ KR RE36 ≈ RINA EH36 ≈ GB 712 Grade EH36 (all class-approved, stamped by the issuing society).

CCS E36 / EH36 is selected when scantlings need the higher yield of the 36 band and the material class assigns −40 °C toughness. Ordinary-strength CCS Grade A–E stay at 235 N/mm² yield and cannot replace E36/EH36 without a drawing change. Within the 36 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C; within the EH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

Plates that pass mill tests under CCS survey are die-stamped or stencilled CCS E36, CCS EH36 or CCS E36 / EH36 (plus Z or U where through-thickness or ultrasonic requirements apply) and are supplied with a mill certificate the CCS Surveyor endorses. SHH STEEL supplies CCS E36 / EH36 from Chinese mills that hold CCS works approval for the grade, from stock in common sizes or from a mill rolling cycle, with CCS survey arranged at the mill.

Size range. Common market thicknesses for E36/EH36 are about 6–80 mm (heavier plates available as per mill approval), widths 1500–3500 mm. Exact maximum thickness for a given delivery condition is as per standard and mill certificate / CCS works approval. Ask for confirmation above 100 mm.

Product (check) analysis column: CCS Rules for Materials and Welding specify heat (ladle) limits; no numeric product-analysis tolerance is tabulated in the rule text reviewed, so product (check) limits are agreed on the order or taken from the approved mill specification and certificate.

Source: IACS UR W11 higher-strength chemistry tables (ladle samples) — the chemistry China Classification Society applies to CCS E36 / EH36 via CCS Rules for Materials. The same alloy set appears in GB 712 for Grade EH36; CCS survey is what turns the plate into class steel. AH/DH/EH share one chemistry column; FH is tighter on C, P, S and adds N control with higher Ni allowance. Toughness is differentiated by impact temperature and supply routes, not by separate C/Mn caps within AH/DH/EH. Product (check) analysis numeric tolerances are not tabulated in UR W11; when required, agree tolerances at enquiry. TMCP steels must also meet the applicable Ceq / Pcm limits on the mill approval — ask for Ceq on the certificate.

Alternative flat-specimen elongations by thickness (indicative UR W11 / industry table for strength 36):

Same tensile band applies to A/AH, D/DH, E/EH and F/FH 36; only impact temperature and chemistry group (FH vs AH/DH/EH) change across the letter.

Source: IACS UR W11 impact table for higher-strength Grade EH36 (full-size; either direction acceptable unless specified). Energies rise with thickness — a 60 mm plate must meet higher values than a 20 mm plate at the same −40 °C. Condition of supply and impact lot size depend on grain-refining practice and thickness (AR/CR/N/TM/QT as permitted). For TMCP E36/EH36, respect Ceq caps ≈ 0.38 % (t≤50) / 0.40 % (50

China Classification Society applies IACS UR W13 thickness tolerances unless the PO states otherwise (often 0.3 mm minus class — confirm on PO; see UNCERTAIN). Plus/flatness/width/length per agreed standard (ASTM A6, EN 10029 or GB/T 709). Surface quality per EN 10163 or equivalent accepted by CCS; state primer/surface class on receipt if needed.

Quantities are approximate and change daily (indicative — confirm before booking); all stock plates carry CCS E36 / EH36 marking and CCS-endorsed mill certificates when sold as CCS class plate. Sizes outside the table (for example 3000 mm width, 60–100 mm thickness, or fixed lengths for a cutting plan) are produced in the next mill rolling cycle, typically 3–6 weeks including CCS survey. Send your size list and we will reply with what is in stock and what must be rolled.

Packing. Plates are bundled by size with steel strapping, marked with heat number, grade and CCS stamp, and shipped in containers (up to about 11.8 m) or break bulk for longer plates.

These are comparisons, not substitutions. Multi-class stamps (CCS + ABS / DNV / LR / BV) require joint survey before rolling. Other CCS siblings in the 36 band are linked via CCS until each product page is live.

Pick E36/EH36 when the drawing specifies higher-strength grade EH36 (or the dual commercial form E36 / EH36). Do not substitute ordinary Grade A/B unless the designer recalculates scantlings — yield differs (355 vs 235). Within the 36 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C. Within the EH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

For yields above 390 N/mm² China Classification Society / IACS move to extra-high strength (UR W16 naming — CCS uses AH420…FH690 with H, matching DNV-style W16 names, not BV’s A420 form).

When CCS CCS E36 / EH36 is the right choice: typical uses are special and primary category members, crack-arrest strakes, and hull structure for cold-route or ice-strengthened vessels needing −40 °C toughness. The Charpy temperature (−40 °C) is fixed by the letter, and the strength by the number (ReH 355 N/mm²). Pick the strength from the scantling calculation and the letter from the material class and design temperature on the approved drawing.

Typical uses: special and primary category members, crack-arrest strakes, and hull structure for cold-route or ice-strengthened vessels needing −40 °C toughness; weight-saving vs ordinary-strength plate in large tankers, bulkers and container ships built to CCS class. See offshore platform steel plates when primary offshore grades apply.

Welding: higher-strength hull steels need approved higher-strength consumables matched to −40 °C weld-metal toughness; preheat and heat input follow the approved WPS and often track Ceq/Pcm from the mill certificate. TMCP E36/EH36 must respect the Ceq caps noted above. Cutting by oxy-fuel/plasma/laser is routine; thick FH plate may need hydrogen control — follow mill recommendations.

Processing notes for CCS E36 / EH36: cold forming is routine within normal shipyard radii. Line heating and fairing of TMCP plate should stay within the temperature limits recommended by the mill, because overheating can reduce the strength gained in controlled rolling. Check the delivery condition on the certificate before planning hot forming.

Every plate is tested and marked at the mill under China Classification Society survey; the mill certificate lists heat number, ladle chemistry, Ceq where applicable, tensile results (ReH ≥ 355 N/mm², Rm 490–630 N/mm², A ≥ 21 %), Charpy at −40 °C, delivery condition and plate numbers, endorsed by the Surveyor. Optional EN 10204 3.2, UT (U), Z-direction, multi-class with ABS/DNV/LR/BV.

On receipt: verify CCS E36 / EH36 (or CCS E36 / CCS EH36) stamp, −40 °C impact data, energies for the delivered thickness band, thickness within UR W13 / PO tolerance, CCS endorsement present — not a GB 712-only stamp.

Charpy acceptance for CCS E36 / EH36 by thickness (IACS UR W11; actual results as per standard and mill certificate):

If UT or 3.2 was ordered, check the UT report and inspector’s plate list as well.

• Ordering “CCS 36” without the letter (EH/…) — toughness class missing
• Writing only E36 or only EH36 without clarifying CCS class — use dual E36 / EH36 or CCS E36 / EH36 on the PO
• Accepting ordinary-strength Grade A/B certificates for a E36/EH36 PO
• Accepting GB 712 Grade EH36 alone without CCS Surveyor endorsement
• Ignoring TMCP Ceq caps on TM plate
• Substituting a different letter (e.g. AH for EH) without drawing approval
• Coil-cut plate without coil approval
• Missing CCS endorsement on the MTC
• Writing DNV NV E36 or LR/EH36 on a CCS-class PO without arranging that society’s survey

Write dual grade (E36 / EH36), delivery condition, impact temperature and certificate type into the PO.

Specify CCS E36 / EH36 (CCS E36 / EH36), delivery condition (AR/CR/N/TM/QT as applicable), thickness × width × length × qty, Z/U, multi-class, certificate type, port. Send to SHH STEEL.

Sample PO line: “Steel plate to China Classification Society Rules for Materials, Grade E36 / EH36 (CCS E36 / EH36), delivery condition [AR/CR/N/TM/QT], 20 × 2500 × 12000 mm, 30 pcs, marked CCS E36 / EH36, certificate endorsed by CCS Surveyor, EN 10204 3.2 [if required], UT [if required], CIF [port].”

CCS E36 / EH36 / CCS E36 / EH36 is higher-strength hull steel under China Classification Society Rules for Materials and IACS UR W11: yield 355 N/mm², tensile 490–630 N/mm², Charpy at −40 °C, marking CCS E36 / EH36. Both commercial forms E36 and EH36 name the same grade. GB 712 Grade EH36 is the related product standard — not a substitute for the CCS stamp. Lock on the order: delivery condition, impact lot size, TMCP Ceq if TM, product analysis if needed, multi-class and 3.2.

SHH STEEL supplies CCS E36 / EH36 plate rolled by Chinese mills that hold China Classification Society works approval for the grade, so every plate carries the CCS E36 / EH36 stamp and a Surveyor-endorsed certificate traceable to its heat. Common thicknesses are available from stock; other sizes are scheduled into the mill rolling cycle with CCS survey arranged at the mill. On request we add EN 10204 3.2 certificates with third-party witness (TÜV, SGS, LR or another agency) and joint certification with ABS, DNV, LR, BV, NK, KR or RINA.

We accept T/T or L/C payment, with inspection before the balance is paid. Small quantities in several sizes, or CCS E36 / EH36 mixed with CCS Grade A/B/D/E or other A–FH sizes, can be combined in one container. A dedicated coordinator sends production and shipping updates with photos, and our own workshop cuts to size, bevels, drills and machines plates before shipment so they arrive ready for fabrication.

Request a quotation: send SHH STEEL the grade (CCS E36 / EH36 / CCS E36 / EH36), thickness, width, length, quantity per size and destination port, plus any multi-class, Z/U or 3.2 certificate requirement. We reply with price, available stock and lead time.
