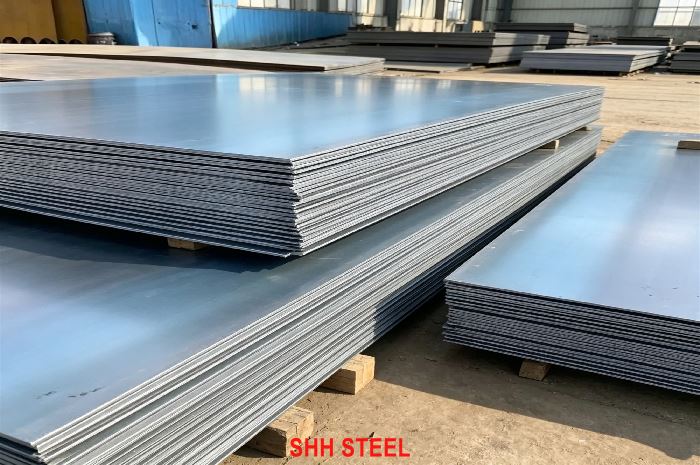

DIN 17100 St70-2 Steel Plate | St70-2 Structural Steel - SHH STEEL

DIN 17100 St70-2 Steel Plate | St70-2 Structural Steel

DIN 17100 St70-2 is a high-strength structural steel plate with a minimum yield strength of 365 MPa and tensile strength of 690–900 MPa. It is the highest strength grade in the standard DIN 17100 series and is used for heavily loaded structures. SHH STEEL supplies St70-2 as Mill Direct Supply with competitive pricing and full mill certification.
Equivalent Grades:
ASTM A572 Gr 65 / EN E360 (1.0070) / JIS SM520B / GB Q420A
Material Specification:
DIN 17100 — Delivery: As-rolled
Share:
General Description
Material Specification
Chemical Composition
Mechanical Properties
Delivery Conditions
Tolerances
Weldability
Equivalent Material Grades
Applications
Why Choose SHH STEEL
FAQ
Conclusion

What is DIN 17100 St70-2 Steel Plate?

As a professional steel plate supplier and China Mill-Direct Exporter, SHH STEEL is pleased to present DIN 17100 St70-2 Steel Plate.

St70-2 is a high-strength non-alloy structural steel under the former German standard DIN 17100. It provides a minimum yield strength of 365 MPa (for thickness ≤ 16 mm) and a tensile strength range of 690–900 MPa. This is the highest strength grade commonly available under DIN 17100 and is designed for heavily loaded welded structures that require elevated load-bearing capacity. Although the standard has been largely replaced by EN 10025, St70-2 is still requested in certain markets.

This grade belongs to the DIN 17100 Steel Plate series. SHH STEEL supplies St70-2 as Mill Direct Supply, sourcing directly from major Chinese steel mills. This ensures competitive mill pricing, consistent quality, shorter lead times and full traceability. We offer thicknesses from 6 mm to 100 mm (subject to mill capability), widths up to 3000–4000 mm and lengths up to 12000–18000 mm. Custom cutting, shot blasting and priming services are available. All plates are delivered with full Mill Test Certificates (EN 10204 3.1 or equivalent).

Material Specification

Specification Element Requirement SHH STEEL Compliance
Primary Standard DIN 17100 Full compliance
Steel Grade St70-2 (1.0070) Confirmed
Delivery Condition As-rolled / Normalized Available
Product Form Steel Plate Available
Thickness Range 6 mm – 100 mm (typical) Custom sizes available
Width / Length Up to 3000–4000 mm / 12000–18000 mm Custom cutting supported
Certification EN 10204 3.1 / Mill Certificate Available

Chemical Composition

Chemical composition according to DIN 17100 (typical values):

Element Ladle Analysis (Max. %) Product Analysis (Max. %)
Carbon (C) ≤ 0.20 ≤ 0.22
Silicon (Si) ≤ 0.55 ≤ 0.60
Manganese (Mn) ≤ 1.60 ≤ 1.70
Phosphorus (P) ≤ 0.045 – 0.050 ≤ 0.055
Sulfur (S) ≤ 0.045 – 0.050 ≤ 0.055
Nitrogen (N) ≤ 0.009 ≤ 0.010

Note: Controlled carbon content is critical to maintain acceptable weldability at this high strength level.

Mechanical Properties

Mechanical properties of DIN 17100 St70-2:

Thickness (mm) Yield Strength ReH (min) Tensile Strength Rm Elongation A (min)
≤ 16 365 MPa 690 – 900 MPa 14%
> 16 ≤ 40 355 MPa 690 – 900 MPa 13%
> 40 ≤ 63 345 MPa 690 – 900 MPa 12%
> 63 ≤ 100 335 MPa 690 – 900 MPa 11%

Density: 7.85 g/cm³ Impact Test: Typically 27 J at +20°C (when required).

Delivery Conditions

SHH STEEL supplies DIN 17100 St70-2 steel plate as Mill Direct Supply in as-rolled or normalized condition according to customer requirements.

Additional options available:

  • Shot blasting and shop primer
  • Ultrasonic testing (EN 10160 or equivalent)
  • Z-direction testing (Z15 / Z25 / Z35)
  • Third-party inspection (SGS, BV, TUV, etc.)

Tolerances

Dimensional tolerances for St70-2 steel plate follow DIN standards or equivalent international standards (EN 10029 / ASTM A6).

  • Thickness, width and length tolerances according to the ordered class.
  • Flatness according to applicable standard.
  • Edge conditions: Mill edge or cut edge (flame / plasma).

Tighter tolerances can be provided upon request.

Weldability

St70-2 is a high-strength structural steel. Successful welding requires careful control of preheating, heat input and the use of low-hydrogen high-strength consumables.

Recommended welding consumables:

Welding Process Recommended Consumables
SMAW (Stick) E9018, E10018
GMAW (MIG/MAG) ER90S-D2, ER100S-G
FCAW E91T1, E101T1
SAW Matching high-strength wire and flux

Preheating is generally required, especially for thicker plates. Interpass temperature must be strictly controlled.

Equivalent Material Grades

Grade Standard Notes
St70-2 DIN 17100 —
1.0070 DIN / EN Material number
S460N / S460M EN 10025-3 / EN 10025-4 Approximate modern equivalents
Q460C / Q460D GB/T 1591 Closest Chinese equivalents
ASTM A572 Grade 65 ASTM Approximate American equivalent
SM570 JIS G3106 Approximate Japanese grade

Applications

DIN 17100 St70-2 is used in high-strength structural and engineering applications where elevated load capacity is required. Typical uses include:

Application Area Typical Components / Uses (Keywords)
Building Structures Heavy beams, columns, frames – St70-2 Structural Steel
Bridges Main girders, high-load components – St70-2 Bridge
Machinery Heavy frames, supports – St70-2 Machinery
Crane & Lifting Equipment Boom structures, frames – St70-2 Crane
General Fabrication High-strength welded structures – St70-2 Fabrication
Construction Structural parts – St70-2 Construction

Why Choose SHH STEEL

SHH STEEL provides St70-2 as Mill Direct Supply. We maintain long-term strategic cooperation with major Chinese steel mills and act as a first-level (primary) agent. This direct mill supply model allows us to offer competitive mill-direct pricing, faster delivery times, stable and traceable quality, and full Mill Test Certificates for DIN 17100 St70-2 Steel Plate.

Customers benefit from reliable supply, short lead times and cost-effective solutions for high-strength structural steel projects worldwide. Our professional export team provides technical support and customized processing services to meet project requirements.

FAQ

What is the strength level of St70-2?
St70-2 has a minimum yield strength of 365 MPa (≤16 mm) and tensile strength of 690–900 MPa, making it the highest strength grade in the standard DIN 17100 series.
Is St70-2 difficult to weld?
St70-2 requires more careful welding procedures than lower strength grades, including preheating and low-hydrogen consumables, but it remains weldable with proper techniques.

Conclusion

DIN 17100 St70-2 Steel Plate from SHH STEEL is a high-strength structural steel offering 365 MPa minimum yield strength and 690–900 MPa tensile strength. As Mill Direct Supply, we provide competitive pricing, consistent quality and full technical support. Trust SHH STEEL for your St70-2 steel plate requirements.

Contact SHH STEEL today for stock availability, pricing and technical support. DIN 17100 St70-2 Steel Plate, St70-2 steel plate, St70-2, St70-2 Structural Steel, St70-2 supplier, St70-2 equivalent
