CCS A32 / AH32 Shipbuilding Steel Plate

Technical Reviewer: Jack | SHH STEEL Material Solutions Department · Updated: 2026-10-27

Under China Classification Society Rules for Materials (IACS UR W11), CCS A32 / AH32 — stamped CCS A32 / AH32 — sits in the higher-strength AH family at 0 °C toughness. Chinese yards and mills use both the short form A32 and the long form AH32 on enquiries; both name the same CCS higher-strength grade. Strength level 32 means minimum yield 315 N/mm², tensile 440–590 N/mm² and elongation 22 % min. (A5). The letter AH (short A) fixes Charpy V-notch testing at 0 °C. GB 712 Grade AH32 covers the same chemistry/tensile band as a Chinese product standard; CCS class work still needs the CCS A32 / AH32 stamp, not GB 712 alone. In commercial enquiries it is called CCS A32 / AH32 or CCS A32 / AH32 shipbuilding steel plate.

Equivalent grades: CCS A32 / AH32 ≈ ASTM A131 Grade AH32 ≈ ABS AH32 ≈ DNV NV A32 ≈ LR AH32 ≈ BV AH32 ≈ NK KA32 ≈ KR RA32 ≈ RINA AH32 ≈ GB 712 Grade AH32 (all class-approved, stamped by the issuing society).

CCS A32 / AH32 is selected when scantlings need the higher yield of the 32 band and the material class assigns 0 °C toughness. Ordinary-strength CCS Grade A–E stay at 235 N/mm² yield and cannot replace A32/AH32 without a drawing change. Within the 32 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C; within the AH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

Plates that pass mill tests under CCS survey are die-stamped or stencilled CCS A32, CCS AH32 or CCS A32 / AH32 (plus Z or U where through-thickness or ultrasonic requirements apply) and are supplied with a mill certificate the CCS Surveyor endorses. SHH STEEL supplies CCS A32 / AH32 from Chinese mills that hold CCS works approval for the grade, from stock in common sizes or from a mill rolling cycle, with CCS survey arranged at the mill.

Size range. Common market thicknesses for A32/AH32 are about 6–80 mm (heavier plates available as per mill approval), widths 1500–3500 mm. Exact maximum thickness for a given delivery condition is as per standard and mill certificate / CCS works approval. Ask for confirmation above 100 mm.

Product (check) analysis column: CCS Rules for Materials and Welding specify heat (ladle) limits; no numeric product-analysis tolerance is tabulated in the rule text reviewed, so product (check) limits are agreed on the order or taken from the approved mill specification and certificate.

Source: IACS UR W11 higher-strength chemistry tables (ladle samples) — the chemistry China Classification Society applies to CCS A32 / AH32 via CCS Rules for Materials. The same alloy set appears in GB 712 for Grade AH32; CCS survey is what turns the plate into class steel. AH/DH/EH share one chemistry column; FH is tighter on C, P, S and adds N control with higher Ni allowance. Toughness is differentiated by impact temperature and supply routes, not by separate C/Mn caps within AH/DH/EH. Product (check) analysis numeric tolerances are not tabulated in UR W11; when required, agree tolerances at enquiry. TMCP steels must also meet the applicable Ceq / Pcm limits on the mill approval — ask for Ceq on the certificate.

Alternative flat-specimen elongations by thickness (indicative UR W11 / industry table for strength 32):

Same tensile band applies to A/AH, D/DH, E/EH and F/FH 32; only impact temperature and chemistry group (FH vs AH/DH/EH) change across the letter.

Source: IACS UR W11 impact table for higher-strength Grade AH32 (full-size; either direction acceptable unless specified). Energies rise with thickness — a 60 mm plate must meet higher values than a 20 mm plate at the same 0 °C. Condition of supply and impact lot size depend on grain-refining practice and thickness (AR/CR/N/TM/QT as permitted). For TMCP A32/AH32, respect Ceq caps ≈ 0.36 % (t≤50) / 0.38 % (50

China Classification Society applies IACS UR W13 thickness tolerances unless the PO states otherwise (often 0.3 mm minus class — confirm on PO; see UNCERTAIN). Plus/flatness/width/length per agreed standard (ASTM A6, EN 10029 or GB/T 709). Surface quality per EN 10163 or equivalent accepted by CCS; state primer/surface class on receipt if needed.

Quantities are approximate and change daily (indicative — confirm before booking); all stock plates carry CCS A32 / AH32 marking and CCS-endorsed mill certificates when sold as CCS class plate. Sizes outside the table (for example 3000 mm width, 60–100 mm thickness, or fixed lengths for a cutting plan) are produced in the next mill rolling cycle, typically 3–6 weeks including CCS survey. Send your size list and we will reply with what is in stock and what must be rolled.

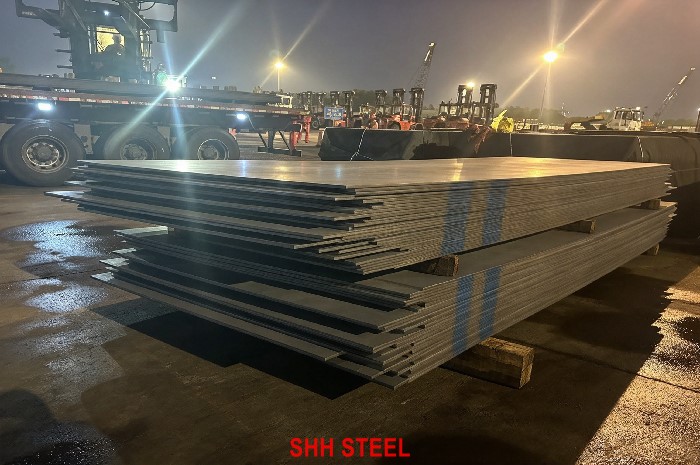

Packing. Plates are bundled by size with steel strapping, marked with heat number, grade and CCS stamp, and shipped in containers (up to about 11.8 m) or break bulk for longer plates.

These are comparisons, not substitutions. Multi-class stamps (CCS + ABS / DNV / LR / BV) require joint survey before rolling. Other CCS siblings in the 32 band are linked via CCS until each product page is live.

Pick A32/AH32 when the drawing specifies higher-strength grade AH32 (or the dual commercial form A32 / AH32). Do not substitute ordinary Grade A/B unless the designer recalculates scantlings — yield differs (315 vs 235). Within the 32 band, letter choice is toughness: A/AH 0 °C → D/DH −20 °C → E/EH −40 °C → F/FH −60 °C. Within the AH letter, strength steps 32 → 36 → 40 raise yield from 315 to 355 to 390 N/mm².

For yields above 390 N/mm² China Classification Society / IACS move to extra-high strength (UR W16 naming — CCS uses AH420…FH690 with H, matching DNV-style W16 names, not BV’s A420 form).

When CCS CCS A32 / AH32 is the right choice: typical uses are higher-strength hull girder plating (deck, bottom, side shell) of bulk carriers, tankers and container ships in normal service where 0 °C toughness suffices. The Charpy temperature (0 °C) is fixed by the letter, and the strength by the number (ReH 315 N/mm²). Pick the strength from the scantling calculation and the letter from the material class and design temperature on the approved drawing.

Typical uses: higher-strength hull girder plating (deck, bottom, side shell) of bulk carriers, tankers and container ships in normal service where 0 °C toughness suffices; weight-saving vs ordinary-strength plate in large tankers, bulkers and container ships built to CCS class. See offshore platform steel plates when primary offshore grades apply.

Welding: higher-strength hull steels need approved higher-strength consumables matched to 0 °C weld-metal toughness; preheat and heat input follow the approved WPS and often track Ceq/Pcm from the mill certificate. TMCP A32/AH32 must respect the Ceq caps noted above. Cutting by oxy-fuel/plasma/laser is routine; thick FH plate may need hydrogen control — follow mill recommendations.

Processing notes for CCS A32 / AH32: cold forming is routine within normal shipyard radii. Line heating and fairing of TMCP plate should stay within the temperature limits recommended by the mill, because overheating can reduce the strength gained in controlled rolling. Check the delivery condition on the certificate before planning hot forming.

Every plate is tested and marked at the mill under China Classification Society survey; the mill certificate lists heat number, ladle chemistry, Ceq where applicable, tensile results (ReH ≥ 315 N/mm², Rm 440–590 N/mm², A ≥ 22 %), Charpy at 0 °C, delivery condition and plate numbers, endorsed by the Surveyor. Optional EN 10204 3.2, UT (U), Z-direction, multi-class with ABS/DNV/LR/BV.

On receipt: verify CCS A32 / AH32 (or CCS A32 / CCS AH32) stamp, 0 °C impact data, energies for the delivered thickness band, thickness within UR W13 / PO tolerance, CCS endorsement present — not a GB 712-only stamp.

Charpy acceptance for CCS A32 / AH32 by thickness (IACS UR W11; actual results as per standard and mill certificate):

If UT or 3.2 was ordered, check the UT report and inspector’s plate list as well.

• Ordering “CCS 32” without the letter (AH/…) — toughness class missing
• Writing only A32 or only AH32 without clarifying CCS class — use dual A32 / AH32 or CCS A32 / AH32 on the PO
• Accepting ordinary-strength Grade A/B certificates for a A32/AH32 PO
• Accepting GB 712 Grade AH32 alone without CCS Surveyor endorsement
• Ignoring TMCP Ceq caps on TM plate
• Substituting a different letter (e.g. AH for AH) without drawing approval
• Coil-cut plate without coil approval
• Missing CCS endorsement on the MTC
• Writing DNV NV A32 or LR/AH32 on a CCS-class PO without arranging that society’s survey

Write dual grade (A32 / AH32), delivery condition, impact temperature and certificate type into the PO.

Specify CCS A32 / AH32 (CCS A32 / AH32), delivery condition (AR/CR/N/TM/QT as applicable), thickness × width × length × qty, Z/U, multi-class, certificate type, port. Send to SHH STEEL.

Sample PO line: “Steel plate to China Classification Society Rules for Materials, Grade A32 / AH32 (CCS A32 / AH32), delivery condition [AR/CR/N/TM/QT], 20 × 2500 × 12000 mm, 30 pcs, marked CCS A32 / AH32, certificate endorsed by CCS Surveyor, EN 10204 3.2 [if required], UT [if required], CIF [port].”

CCS A32 / AH32 / CCS A32 / AH32 is higher-strength hull steel under China Classification Society Rules for Materials and IACS UR W11: yield 315 N/mm², tensile 440–590 N/mm², Charpy at 0 °C, marking CCS A32 / AH32. Both commercial forms A32 and AH32 name the same grade. GB 712 Grade AH32 is the related product standard — not a substitute for the CCS stamp. Lock on the order: delivery condition, impact lot size, TMCP Ceq if TM, product analysis if needed, multi-class and 3.2.

SHH STEEL supplies CCS A32 / AH32 plate rolled by Chinese mills that hold China Classification Society works approval for the grade, so every plate carries the CCS A32 / AH32 stamp and a Surveyor-endorsed certificate traceable to its heat. Common thicknesses are available from stock; other sizes are scheduled into the mill rolling cycle with CCS survey arranged at the mill. On request we add EN 10204 3.2 certificates with third-party witness (TÜV, SGS, LR or another agency) and joint certification with ABS, DNV, LR, BV, NK, KR or RINA.

We accept T/T or L/C payment, with inspection before the balance is paid. Small quantities in several sizes, or CCS A32 / AH32 mixed with CCS Grade A/B/D/E or other A–FH sizes, can be combined in one container. A dedicated coordinator sends production and shipping updates with photos, and our own workshop cuts to size, bevels, drills and machines plates before shipment so they arrive ready for fabrication.

Request a quotation: send SHH STEEL the grade (CCS A32 / AH32 / CCS A32 / AH32), thickness, width, length, quantity per size and destination port, plus any multi-class, Z/U or 3.2 certificate requirement. We reply with price, available stock and lead time.
