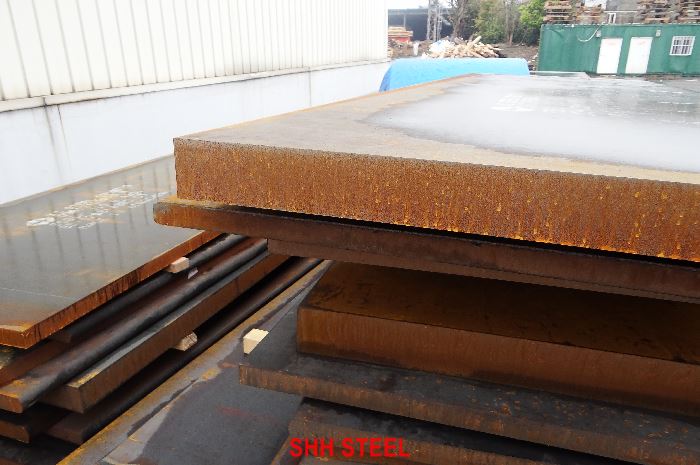

ASTM A203 Grade A Steel Plate | A203 Gr.A Nickel Pressure Vessel Plate

As a professional China steel mill-Direct Supply and pressure-vessel plate exporter, SHH STEEL supplies ASTM A203 Grade A Steel Plate.

This grade is searched and specified under many equivalent writings. In inquiries, drawings and AI searches you will see ASTM A203 Grade A, ASTM A203 Gr.A, ASTM A203 Gr A, A203GRA, A203 GR A, A203 Grade A steel plate, ASME SA203 Grade A, SA203 Gr.A, SA203GRA, SA-203 Grade A, 2.25 nickel steel plate and A203 nickel pressure vessel plate. All of these names refer to the same 2.25% nickel alloy plate under ASTM A203/A203M (ASME SA-203/SA-203M).

ASTM A203 Grade A is intended primarily for welded pressure vessels in moderate- and low-temperature service. Nickel in the 2.10–2.50% (heat analysis) range improves notch toughness compared with plain carbon vessel steels such as ASTM A516 or ASME SA516. Minimum yield is 255 MPa (37 ksi) and tensile strength is 450–585 MPa (65–85 ksi). Plates of Grades A, B, D and E are normally delivered normalized.

SHH STEEL supplies A203 Gr.A as true China mill-Direct Supply, working directly with Chinese mills that roll pressure-vessel nickel steel. Dual certification to ASTM A203 Grade A and ASME SA203 Grade A is available when the project falls under ASME Section VIII.

Buyers comparing vessel grades also look at ASTM A537, ASME SA537, ASTM A285 and ASME SA515. SHH STEEL helps confirm whether 2.25% Ni A203 Gr.A is required, or whether a 3.5% Ni grade (D/E/F) or a carbon vessel plate is the correct choice.

This product belongs to the Pressure Vessel Steel Plates family. It is a nickel-alloy vessel plate, not a decorative stainless plate and not a structural Carbon Steel Plates grade.

ASTM A203 Grade A chemistry must be reported as heat analysis (ladle analysis) and, when specified, product analysis. Limits below follow ASTM A203/A203M for Grade A.

Heat Analysis (Ladle Analysis) — Grade A

Product Analysis — Grade A

Nickel is the defining alloy. Heat analysis 2.10–2.50% Ni (product 2.03–2.57%) is what separates A203 Gr.A / A203GRA from carbon vessel steels. Steel shall be killed and shall meet fine-grain practice under ASTM A20. SHH STEEL reports both heat and product analysis on the mill certificate when product analysis is ordered.

Tensile Requirements — ASTM A203 Grade A (A203 Gr.A)

These values apply to both thin and thick plates of Grade A (unlike Grade F, which changes with thickness). Hardness is typically around 160 HB. Density is 7.85 g/cm³, the usual value for weight calculation on vessel shells.

SHH STEEL supplies A203 Gr.A with tensile results on every heat. Impact testing is agreed by temperature and orientation when the purchaser specifies Charpy requirements, or when an optional faster-cool + temper route is used.

A203 has two nickel levels and four strength levels. Grade A is the 2.25% Ni, lower-strength entry grade.

Choose A203 Gr.A when the drawing says Grade A / A203GRA / SA203 Gr.A and 255 MPa yield is enough. If the same 2.25% Ni chemistry is wanted at 275 MPa yield, use Grade B. If lower temperature toughness is the driver, compare Grade D or E (3.5% Ni). For higher-strength carbon or HSLA vessel options, see ASTM A537, ASME SA537 and HSLA Steel Plates. Chrome-moly elevated-temperature vessels use ASME SA387, not A203.

Nickel is added to A203 Gr.A to improve notch toughness for welded pressure vessels in moderate- and low-temperature service. It is not a cryogenic 9% Ni steel, but it is tougher than ordinary carbon vessel plate of similar strength.

When plates of Grades A, B, D and E are given a cooling rate faster than air cooling and then tempered at not less than 595°C, ASTM A203 requires Charpy V-notch testing with a minimum average of 27 J (20 ft·lbf). Test temperature and specimen orientation are by agreement.

SHH STEEL can supply A203 Grade A with agreed impact temperature for LNG-related utilities, refrigerated storage, northern pipelines and low-temperature process drums. Always confirm the MDMT on the vessel drawing before locking Grade A versus Grade D/E.

ASTM A203 Grade A is designed as a welded pressure-vessel plate. Normalized 2.25% Ni steel has good weldability with low-hydrogen procedures.

Typical practice uses matching nickel-bearing or C-Mn low-hydrogen consumables qualified to ASME Section IX. Preheat depends on thickness and restraint. PWHT, when required by the vessel code, is commonly in the 595–650°C range, consistent with the tempering floor in A203. Bend tests per the applicable vessel procedure confirm ductility of the joint.

Compared with quenched-and-tempered Grade F, Grade A is easier to fabricate on site. SHH STEEL recommends qualified WPS/PQR for every thickness break.

All ASTM A203 Grade A plates shall be normalized, except where the purchaser approves a faster cool plus temper at not less than 595°C for toughness.

Grade F is the only A203 grade that must be austenitized, water quenched and tempered. Do not apply Grade F heat treatment to Grade A unless the order is changed to Grade F.

SHH STEEL delivers A203 Gr.A in the normalized condition as standard. Mill certificates state heat treatment, heat analysis, product analysis (if ordered), tensile results and any agreed Charpy values.

Pressure-vessel plates are supplied as-rolled and heat-treated, then pickled or shot-blasted as agreed. Decorative finishes such as 2B, BA or No.4 are not used on A203 Gr.A. Surface condition is industrial plate quality suitable for welding, NDE and coating.

Dimensional tolerances follow ASTM A20 / ASME SA-20 practices for pressure-vessel plates.

Typical supply range from SHH STEEL:

• Thickness: 6 mm – 150 mm (heavier by mill enquiry)
• Width: up to about 4600 mm
• Length: up to about 12000 mm

Flatness, camber and thickness tolerance are those of vessel plate, not strip. Ultrasonic testing to ASTM A435 / A578 can be added when the vessel specification requires lamination checks. SHH STEEL also arranges steel cutting services to shell and head nest sizes.

Equivalents are guidance only. For stamping and ASME registration, order ASTM A203 Grade A or ASME SA203 Grade A by name. Nearby carbon vessel grades include ASTM A516, ASME SA516, ASTM A285 and ASME SA515.

ASTM A203 Grade A / A203 Gr.A is selected for welded vessels that need 2.25% nickel toughness at 255 MPa yield. Typical applications of ASTM A203 Grade A Steel Plate include:

SHH STEEL supplies A203 Gr.A for these vessel applications with full heat traceability. Related industry pages include petrochemical industry and energy industry. Supporting services include steel cutting services, steel welding services, steel testing service and worldwide shipping service.

SHH STEEL is a China mill-Direct Supply for pressure-vessel and alloy plates. For ASTM A203 Grade A we offer:

• Genuine China mill-Direct Supply pricing on A203 Gr.A / SA203 Gr.A
• Heat analysis and product analysis on the MTC when specified
• Dual ASTM A203 / ASME SA203 certification
• Normalized delivery with optional agreed Charpy temperature
• Thickness, width and length cut to vessel nest sizes
• Technical support to separate Grade A from B/D/E/F and from A516 / A537
• Inspection support including UT and third-party witnessing
• Logistics through worldwide shipping service

For company scope and other vessel grades, visit China steel Mill Agent-SHH STEEL.

ASTM A203 Grade A Steel Plate is the 2.25% nickel, 255 MPa yield pressure-vessel grade under A203/A203M and SA-203. Whether the inquiry says A203 Gr.A, A203GRA, SA203 Grade A or 2.25 nickel steel plate, SHH STEEL supplies the same normalized vessel plate with heat and product analysis, dual certification and mill-direct pricing.

As a professional China mill-Direct Supply, SHH STEEL provides ASTM A203 Grade A / A203 Gr.A Nickel Pressure Vessel Plate with full MTCs and technical support for ASME Section VIII fabrication.

Contact SHH STEEL today for stock, impact temperature, cutting sizes or a quotation.
