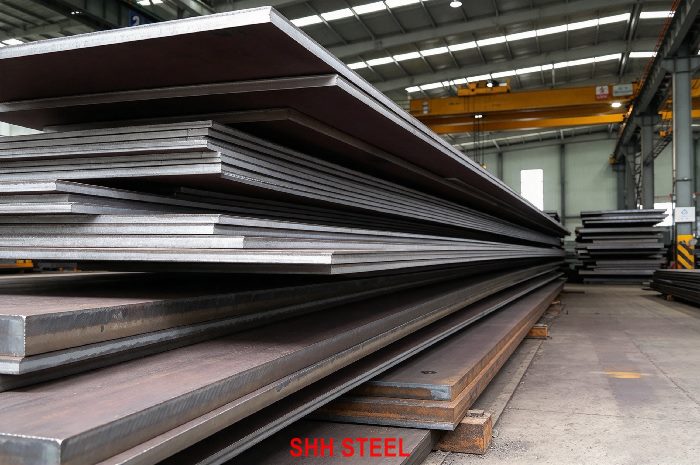

ASTM A131 AH40 Shipbuilding Steel Plate

Technical Reviewer: Jack | SHH STEEL Material Solutions Department · Updated: 2026-10-27

ASTM A131 AH40 is the 0 °C [32 °F] higher-strength hull steel at the 40 level of A131: 390 MPa [57 ksi] minimum yield, 510–650 MPa [74–94 ksi] tensile, killed and fine-grain treated steel.

Equivalent grades: ABS AH40 · DNV NV A40 · LR AH40 · BV AH40 · CCS A40 / AH40 · NK KA40 · KR RA40 · RINA AH40 · GB 712 Grade AH40.

The letter sets toughness, the number sets strength: AH40 is letter A at level 40. AH40, DH40, EH40 and FH40 share tensile values and differ in impact temperature (and, for FH, chemistry).

ASTM A131/A131M is a product specification: it tells a mill what to make and test, while the general rules for plate — dimensions, tolerances, test methods, retests, marking and test reports — come from ASTM A6/A6M, which A131 references. Read the two together; neither is complete alone.

A131 was developed to mirror the American Bureau of Shipping material rules, which is why its grade letters match the IACS system. The important difference is legal, not metallurgical: an A131 plate is certified by the mill; a classed plate is additionally certified by a surveyor. US Coast Guard plan reviewers and many US owners accept A131 for non-classed or domestic work, while classed hulls normally require the society certificate (confirm with the approving authority).

SHH STEEL supplies ASTM A131 AH40 with the mill test report, ABS or other class certification on the same heat when ordered, and cutting to drawing. The full range is under ASTM A131 Grade AH40.

Where AH40 sits. AH is the high-strength workhorse for hull girders in temperate trades; its impact test runs at 0 °C [32 °F]. Level 40 (390 MPa [57 ksi]) is the top of A131. It appears in heavily loaded decks, hatch coamings and offshore structure where level-36 plate would become uneconomically thick. AH plate is the volume product of the series; it is what most service centres mean when they quote “A131 high-strength”.

Dual units are deliberate: A131 is written in inch-pound units and A131M in SI. The two are not exact conversions of each other, so the order must name one system as governing — mixing them on a mill order is the classic source of a borderline rejection.

For AH40 the lines that matter are the impact temperature (0 °C [32 °F]) and the condition of supply, which drives test frequency and the carbon-equivalent expectation.

Product (check) analysis column = heat (ladle) limit adjusted by ASTM A6/A6M-19 Table A “Permitted Variations in Product Analysis”, which ASTM A131/A131M invokes through A6/A6M (maximum + “over”, minimum − “under”; row chosen by the specified upper limit); arithmetic shown in brackets.

Values follow the IACS UR W11 / ABS basis that A131 tracks; the A131 table in the edition named on your order governs (no local copy checked — UNCERTAIN). AH40, DH40 and EH40 share one chemistry column; one heat is often certified to several letters and sorted by impact result.

US mill test reports print a fixed analysis list — commonly C, Mn, P, S, Si, Cu, Ni, Cr, Mo, V, Nb, Al and sometimes Ti, N, B and Ca — regardless of grade. That makes residual-element screening easy: compare every line, not only the ones A131 limits.

A131 requires the heat analysis to be reported for every element with a limit in its table; where a grade allows grain-refining elements, the one actually used must be shown so the inspector can confirm fine-grain practice. Residuals that A6/A6M asks to be reported (Cu, Ni, Cr, Mo, V, Nb) normally appear even when A131 itself sets no limit (confirm A6/A6M reporting rule for the cited edition).

A131 follows A6/A6M practice for specimens: rectangular 200 mm [8 in.] or 50 mm [2 in.] gauge specimens, or round specimens in heavy plate, with elongation minimums tied to the gauge length — not the proportional 5.65√S₀ gauge used in European and class certificates. That is why the elongation figure on an A131 report can look lower than on a class certificate for the same steel (gauge-length adjustments for thin/thick plate per A6/A6M — UNCERTAIN).

AH40, DH40, EH40 and FH40 share these tensile values. Against Grade A the yield gain is 155 MPa, which the designer converts into thinner plate.

A131 reports tensile results in both unit systems when the order is written to A131M or to the dual standard; the order must say which system governs, because rounding is not identical. For TMCP higher-strength plate the yield/tensile ratio is often 0.80–0.90; A131 sets no ratio limit, so add one as a supplementary requirement if your design code needs it (indicative).

AH plate in moderate thickness may be as-rolled or controlled-rolled; above roughly 20–25 mm TMCP or N is usual.

Each value is the average of three full-size specimens; one may fall below the average but not below 70 % of it. Longitudinal specimens apply unless transverse are ordered. Impact testing itself is done to ASTM A370 / E23 practice referenced through A6/A6M (clause numbers not quoted — UNCERTAIN).

The test lot rule is where A131 and the society rules are most often confused on the shop floor: the report should state the condition of supply, because it decides whether one set of three covers a batch, a plate-as-rolled or each heat-treated plate.

Almost everything a receiving inspector checks on ASTM A131 AH40 apart from chemistry and mechanical values comes from A6/A6M: thickness, width, length and flatness tolerances; camber; permissible variations in weight; surface-imperfection removal by grinding; weld repair limits; retest rules; and the content of the test report.

Thickness tolerance is the point to watch. Class rules apply a small fixed minus tolerance to hull plate (IACS UR W13, commonly −0.3 mm), while A6/A6M expresses plate tolerances as variations over ordered thickness and weight (table numbers not quoted — UNCERTAIN). For classed hulls state on the order that the class minus tolerance applies; for domestic A131 work, A6/A6M governs.

Supplementary requirements in A6/A6M — for example ultrasonic examination (to A435 or A578), product analysis, through-thickness testing or additional tension tests — apply only when ordered by number. If it is not on the purchase order, the mill is not obliged to do it.

Heat vs. plate-as-rolled. A6/A6M distinguishes the heat (the melt) from the plate-as-rolled (the product of one slab or ingot). Test frequencies in A131 are expressed against those units, so a report listing one heat but several plates-as-rolled should show results for each unit the standard requires.

A131 and the ABS Rules (Part 2) share grade letters, chemistry columns and test values because A131 was written to align with them. A plate certified only to A131 is, however, not an ABS plate: ABS certification requires an ABS-approved mill, survey of testing and the ABS stamp on the plate.

In practice US and Gulf Coast yards order “ASTM A131 AH40 / ABS AH40” dual-certified material. The mill makes one heat, the surveyor witnesses or audits the tests, and the plate is stencilled with both. Where a vessel is not classed — many inland barges and domestic workboats — A131 alone is often what the owner and the approving authority require.

Edition mismatches happen: the ABS Rules are revised yearly, while the A131 year is fixed on the order. If the contract cites both, state which governs in case of difference.

The table maps designations, not certificates. Every grade in it is built on the same IACS unified requirement, so chemistry, tensile and impact values line up closely; what differs is who tests, who stamps and which rule book the yard’s approved plan cites.

A plate can carry ASTM A131 AH40 plus one or more society marks when the mill holds the approvals and each surveyor witnesses the tests before shipment. Ordering the extra marks after rolling is not possible.

Read the series as a grid: across (AH40, DH40, EH40, FH40) the test temperature falls; down (AH32, AH36, AH40) the yield rises. A higher letter at the same level is normally accepted as a substitute; a lower letter or lower level is not.

Typical uses of AH40: main hull girder of barges, offshore supply vessels, Jones Act tankers and container ships, and deck structure in temperate service.

Why not more strength? A131 stops at level 40. If a design needs 420 N/mm² or above, it leaves A131 and moves to a class-society extra-high-strength grade or another ASTM product specification; there is no “A131 AH420”.

Weld AH40 with low-hydrogen consumables qualified for higher-strength hull steel — typically AWS E7018-1, E71T-1/-9 or F7A/P classes with impact properties at or below 0 °C [32 °F] in the weld metal (consumable choice per WPS — confirm).

TMCP plate at level 40 has a low carbon equivalent (about Ceq 0.40 % up to 50 mm), so preheat can often be reduced, but high-heat-input processes such as electrogas or one-side SAW need a procedure qualified on plate from the same route. Do not line-heat TMCP plate above the mill’s stated limit (often quoted near 650 °C — UNCERTAIN, mill-specific).

A6/A6M requires a test report showing the specification and year, grade, heat number, heat analysis, tensile results, impact results, condition of supply and any supplementary requirements. Ask for the report before shipment and check it against the purchase order line by line.

Plates are marked with the manufacturer’s name or brand, heat number, specification and grade — for example “A131 AH40” — and, where class certified, the society stamp. On receipt check the stencil, match heat and plate numbers, confirm 0 °C [32 °F] and measure thickness at several points.

Electronic MTRs. A6/A6M allows the test report to be transmitted electronically provided it carries the same content and is traceable to the mill’s quality system. Keep the PDF with the heat number in the file name — classification surveyors and US Coast Guard plan reviewers ask for it years later.

Widths of 1829, 2438 and 3048 mm [72, 96, 120 in.] follow North American plate practice; metric widths are also available. Quantities change weekly — confirm before booking.

Non-stock sizes go into the next mill campaign: about 4–7 weeks plus freight (commercial estimate).

Processing. We cut AH40 to drawing by plasma or oxy-fuel, bevel, shot-blast and prime, and transfer the heat number, grade and specification to every cut piece so the mill test report stays valid for each part.

• Ordering ASTM A36 or A572 Gr. 50 when the plan says AH40
• Writing only “A131 40” so the letter is undefined
• Accepting a mild-grade report against a higher-strength order
• No Ceq on the report for TMCP plate
• Assuming A131 alone satisfies a classed-hull plan
• Impact band for the delivered thickness not checked

A36 and A572 are building and bridge steels; they share yield levels with some A131 grades but not the hull-steel deoxidation, letter-graded toughness or marking. They are not substitutes on a ship plan.

The one we see most. A purchase order reading only “A131 40” or “A131 high-strength” — without the A letter the impact temperature is undefined and the mill will price, and test, the cheapest letter.

A6/A6M lists the information the purchaser must supply; A131 adds grade-specific items. Missing ordering information is the most common reason a mill delivers something technically compliant but commercially wrong.

Sample line: “Plate, ASTM A131/A131M-xx AH40, TMCP, 12.7 × 2438 × 12192 mm [1/2 × 96 × 480 in.], 40 pcs, SI governs, mill test report per A6/A6M, ABS certificate, UT per A578 Level B” — then send it to SHH STEEL.

Purchase-order checklist (A131/A6 ordering information):

• Specification and year: ASTM A131/A131M-xx (state A131 or A131M units)
• Grade: AH40
• Quantity (weight or pieces), dimensions and thickness tolerance basis per A6/A6M
• Condition of supply / heat treatment (CR, N or TMCP as permitted; state TMCP if Ceq matters)
• Impact test frequency and orientation where the order requires more than the basic rule
• Supplementary requirements (e.g. UT, through-thickness, product analysis) by number from A6/A6M
• Certification: mill test report, ABS (or other society) witness if required, EN 10204 3.1/3.2 if requested
• Marking, packing and destination

ASTM A131 AH40 is the higher-strength grade of ASTM A131/A131M, the US purchase specification for ship structural steel aligned with the ABS Rules: yield 390 MPa [57 ksi], tensile 510–650 MPa, impact 0 °C [32 °F]. Order it by specification, year and grade, with A6/A6M ordering information complete.

SHH STEEL supplies ASTM A131 AH40 with mill test reports, dual ABS/class certification on request, cutting and UT. Send grade, sizes, quantities and port for a quotation.
