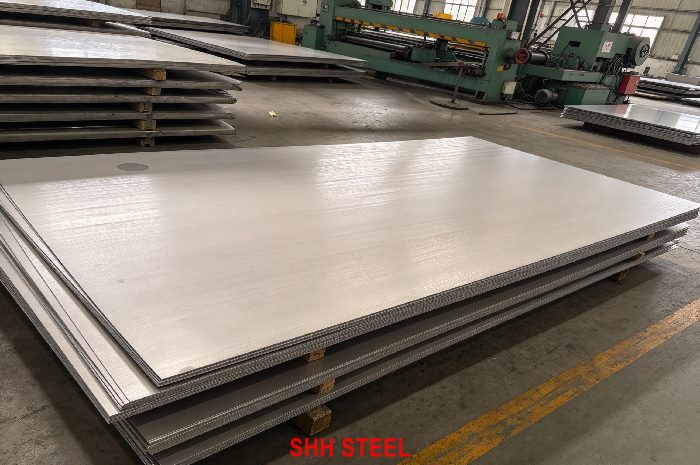

ASTM A240 Type S32760 Stainless Steel Sheet & Plate

As a stainless steel supplier and China mill-direct exporter, SHH STEEL supplies ASTM A240 UNS S32760 Stainless Steel Sheet & Plate. UNS S32760 is a super-duplex stainless steel listed in ASTM A240 with 24.0 – 26.0 % chromium, 6.0 – 8.0 % nickel, 3.0 – 4.0 % molybdenum, 0.20 – 0.30 % nitrogen, 0.50 – 1.00 % copper and 0.50 – 1.00 % tungsten.

A240 footnote K requires Cr + 3.3 (Mo + ½ W) + 16 N to be at least 41. The IMOA duplex guide lists S32760 against EN 1.4501 (X2CrNiMoCuWN25-7-4), supplied as EN 10088-2 1.4501 plate. SHH STEEL supplies the standard grade unless a brand is ordered.

This page summarises the requirements for ASTM A240 S32760 plate and sheet: chemical composition, mechanical properties, heat treatment and the general delivery requirements of ASTM A480/A480M. Values are from ASTM A240/A240M-22; check whether a later edition applies to your order. SHH STEEL confirms the edition named on the drawing before an order is placed.

ASTM A240 refers to ASTM A480/A480M for general requirements, including annealing, tolerances, testing and marking. ASTM A923 testing is agreed at the order.

The minimum PRE requirement means a heat at the bottom of every range would not pass; the mill must balance chromium, molybdenum, tungsten and nitrogen. The IMOA guide gives a PREN range of 40 – 43.

The yield strength minimum is the same as ASTM A240 S32520 and ASTM A240 S32550, with a 25 % elongation requirement.

Rapid cooling after annealing avoids intermetallic phases; SHH STEEL asks the mill to record the annealing temperature on the certificate.

Lead time from the mill is normally 30 – 40 days after order confirmation, depending on size, finish and rolling schedule. Dimensional tolerances follow ASTM A480/A480M unless the order states otherwise.

These are typical values quoted by the IMOA guide; they are not requirements of ASTM A240.

• Super-duplex chemistry with copper and tungsten.
• Minimum PRE 41 by A240 footnote K.
• Tensile strength ≥ 750 MPa, yield strength ≥ 550 MPa.
• Low sulphur (≤ 0.010 %).
• Magnetic, like all duplex grades.

For pressure equipment in Europe, see EN 10028-7 1.4501 pressure vessel plate. In ASME work, ASME SA240 2507 plate is also commonly compared.

The IMOA duplex guide notes that super-duplex (25 % chromium) grades are used for their high strength and fatigue resistance in oil and gas service, including:

• Separators, scrubbers and pumps
• Process piping systems
• Subsea manifolds and flowlines
• Equipment where galvanic compatibility with other high-alloy stainless steels matters

For less severe service, ASTM A240 Type 2205 sheet and plate is the usual alternative. SHH STEEL supplies S32760 plate for these uses as full plates or cut-to-size blanks.

The table compares the super-duplex grades of ASTM A240 with the standard duplex grade 2205. Chemistry is from A240-22 Table 1 and the minimum mechanical properties from Table 2; all grades are supplied annealed.

All four 25 % chromium grades reach 550 MPa minimum yield strength, about 100 MPa more than 2205. They differ mainly in copper and tungsten, and in elongation: S32520 and S32760 require 25 %, S32750 and S32550 15 %. In EN terms, 2205 corresponds to EN 10088-2 1.4462 and 2507 to EN 10088-2 1.4410. SHH STEEL can quote these grades side by side when a buyer is still choosing.

Using PREN = %Cr + 3.3 × %Mo + 16 × %N, the A240 limits give S32760 a PREN of about 37.1 at the minimum of every range and 44.0 at the maximum; the IMOA duplex guide quotes 40 – 43 for this grade and classifies super-duplex steels as having a PREN of 40 to 45. PREN ranks resistance to pitting; it does not replace testing in the actual environment. Footnote K of A240 also requires Cr + 3.3 (Mo + ½ W) + 16 N to be at least 41, so every S32760 heat must reach this PRE including the tungsten contribution.

The IMOA guide reports that duplex grades resist chloride stress corrosion cracking much better than Type 304L and 316L in accelerated laboratory tests. Their corrosion resistance depends on correct annealing: intermetallic phases formed by slow cooling or by holding in the critical temperature range lower both toughness and pitting resistance.

ASTM A923 is used to detect detrimental intermetallic phases in duplex steels. In Method C, a ferric chloride corrosion test, the IMOA guide lists a test temperature of agreed at the order (S32760 is not listed in the guide’s table; S32750, S32550 and S32520 are tested at 40 °C) with a maximum acceptable corrosion rate of 10 mg/dm² per day. SHH STEEL can add A923 testing to the mill order and report the results with the certificate.

Because the ferrite of duplex steels embrittles after long exposure around 475 °C, the IMOA guide advises that duplex steels should not be used for prolonged periods above the temperature allowed by the applicable pressure-vessel design code; it quotes 315 °C as the ASME upper limit for common duplex grades. Super-duplex grades also lose toughness at very low temperatures more than austenitic grades, so impact requirements should be set where low-temperature service is expected; ASTM A240 Supplementary Requirement S1 allows Charpy impact testing to be specified.

The IMOA duplex guide notes that duplex weld metal is much more resistant to hot cracking than austenitic weld metal, but that the procedure must let the heat-affected zone cool quickly. For super-duplex grades it limits the interpass temperature to 100 °C, and lists E2594 type filler metal for joining super-duplex to super-duplex or to standard duplex. Modern duplex base metal is balanced to about 40 – 50 % ferrite; the guide considers 25 – 75 % ferrite (FN 30 – 90) acceptable in welds when toughness and corrosion tests such as ASTM A923 are satisfactory.

In cold forming, super-duplex plate needs more force than 316L and shows more springback because of its higher yield strength. Duplex steels are also more difficult to machine than 300-series grades of similar corrosion resistance. The IMOA guide recommends:

• Powerful, rigid machines and strong, rigid tool mounting.
• Short tool extension to minimise vibration, and a nose radius no larger than necessary.
• Sharp carbide edges, and a depth of cut below the work-hardened layer of the previous pass.
• Adequate but not excessive cutting speed, scheduled insert changes, and generous coolant.

SHH STEEL can supply S32760 cut to size by plasma or waterjet, with bevels prepared for welding.

ASTM A240 refers to ASTM A480/A480M for sampling, tension and hardness testing, retests and certification. Beyond these standard tests, buyers of super-duplex plate often add:

• Charpy impact testing under A240 Supplementary Requirement S1, at the temperature set by the design.
• ASTM A923 testing for intermetallic phases (Methods A, B or C).
• Ferrite measurement of base metal or welds; the IMOA guide cites AWS A4.2 and EN ISO 8249 for calibrating magnetic instruments.
• Positive material identification (PMI) of every plate before shipment.
• Third-party witness of tests and an EN 10204 3.2 certificate.

The IMOA guide notes that requiring phase-balance tests on material already in stock is more expensive and slower than specifying them when the plate is made, so these requirements should be on the original order. SHH STEEL writes them into the mill order and checks them on the certificate.

• Specification and edition: ASTM A240/A240M-22 (or ASME SA-240), UNS S32760.
• Product form and dimensions: plate, sheet or strip; thickness, width, length and quantity.
• Finish (for example No.1 for hot-rolled plate, 2B for cold-rolled sheet) and any protective film.
• Supplementary requirements: S1 Charpy test, ASTM A923 method, ferrite measurement.
• Inspection document type (3.1 or 3.2) and any third-party inspector.
• Dual certification to EN 10088-2 or EN 10028-7 if needed.
• Marking, packing and destination.

SHH STEEL confirms in writing any point the mill cannot meet before the order is placed, so that S32760 arrives exactly as specified.

Hot forming of duplex steel should be done within these ranges and followed by a full solution anneal and rapid cooling, because the slow cooling that follows hot work can leave intermetallic phases. Where S32760 is hot formed by a fabricator, SHH STEEL recommends that the annealing procedure be agreed and recorded as part of the fabrication plan.

The IMOA duplex guide devotes a chapter to post-fabrication clean-up, because surface condition decides how well the steel performs in service. Iron transferred from carbon-steel tools or shop dust must be removed before the equipment is put into service, by mechanical cleaning, chemical cleaning or both; ASTM A380 describes cleaning methods and ASTM A967 covers chemical passivation treatments and how to verify them.

Weld spatter, heat tint, flux, slag and arc strikes can act as crevices and start crevice corrosion in chloride service, so they should be avoided or removed. The guide notes that the heat tint on duplex steel tends to be thin, adherent and harder to remove chemically than on austenitic steel of similar corrosion resistance; for 2205 it gives a pickling solution of 20 % nitric acid and 5 % hydrofluoric acid, with pickling pastes as an easier option for large pieces. Fine grinding can also be used, but coarse grinding marks can themselves trap deposits. Research cited by the guide shows that chemical cleaning after welding gives the best corrosion resistance.

SHH STEEL supplies S32760 plate pickled from the mill and can advise on surface protection during transport and fabrication.

ASTM A240 lists S32760 by UNS number, with footnote K requiring Cr + 3.3 (Mo + ½ W) + 16 N of at least 41. The IMOA cross-reference table lists it against EN 1.4501 (X2CrNiMoCuWN25-7-4). Some project specifications name a brand because they also call for supplementary tests that the brand owner applies; in that case the buyer should check whether the A240 grade alone meets the project specification. SHH STEEL quotes the UNS grade and states any brand only when the customer has asked for it.

The IMOA duplex guide gives density (7.80 g/cm³), electrical resistivity (0.85 µΩ·m) and Young’s modulus (190 GPa) for S32760 but no thermal expansion or conductivity values. For design, producer data sheets should be used for these properties; as a guide, the guide’s values for S32750 (2507) are 13.0 × 10⁻⁶/K expansion from 20 to 100 °C and 16.0 W/(m·K) conductivity at 20 °C. SHH STEEL can obtain the producing mill’s data sheet for the heat supplied.

Plate weight is calculated from the dimensions and the density. Using 7.80 g/cm³ (IMOA duplex guide, S32760), one square metre of S32760 plate 1 mm thick weighs 7.80 kg, so the mass of a plate is density × thickness (mm) × width (m) × length (m).

Actual weight differs from theoretical weight because of thickness tolerance; whether the invoice uses theoretical or actual weight should be agreed at the order. SHH STEEL shows both on the packing list.

As an experienced S32760 supplier, we find that buyers usually worry less about price than about getting the right material on time. The table below lists the concerns we hear most often and how SHH STEEL deals with each one.

SHH STEEL also offers steel cutting services, bending and forming services, a third-party testing service with partner laboratories, and a worldwide shipping service. See our full range of stainless steel sheets and plates.

ASTM A240 UNS S32760 Stainless Steel Sheet & Plate is a tungsten- and copper-bearing super-duplex grade with a minimum PRE of 41 and 550 MPa minimum yield strength, the ASTM counterpart of EN 1.4501. SHH STEEL supplies it with full ASTM A240/A240M compliance, 3.1 inspection certificates and optional third-party testing, with a normal lead time of 30 – 40 days. Contact SHH STEEL for availability, sizes and a quotation for your S32760 requirement.
