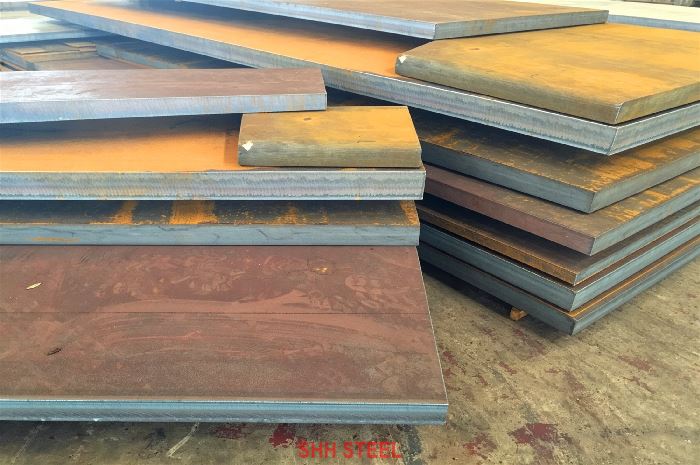

ASTM A572 Grade 65 (A572GR65) structural steel plates

As a production and export expert at SHH STEEL, we are pleased to present our ASTM A572 Grade 65 High-Strength Low-Alloy (HSLA) Steel Plates, also known as A572 Gr.65 or A572GR65. This is the highest strength grade in the ASTM A572 family, designed for applications requiring maximum strength-to-weight performance such as long-span bridges, high-rise buildings, heavy industrial structures, and large equipment frames.

It features a minimum yield strength of 450 MPa (65 ksi) and a minimum tensile strength of 550 MPa (80 ksi). Due to its high strength, elongation is lower than lower grades, but it still offers good toughness when properly processed. SHH STEEL supplies these plates in thicknesses typically from 6mm to 25mm (maximum thickness is more restricted than lower grades per ASTM A572), with widths up to 4600mm and lengths up to 12000mm. Custom sizes are available within specification limits.

The controlled-rolled condition optimizes the microstructure for high strength and consistent properties. For buyers exploring ASTM A572 Gr.65 properties or equivalents, this grade provides the highest load-bearing capacity in the A572 series while maintaining reasonable weldability through microalloying with niobium and vanadium. Our plates undergo thorough ultrasonic inspection and Charpy impact testing where required, ensuring defect-free material that meets global standards.

With optimized chemistry and low carbon equivalent for its strength level, A572 Gr.65 plates can be welded using proper procedures. SHH STEEL’s quality commitment includes full mill test certificates, traceability, and technical support for critical structural projects worldwide.

As a production and export expert at SHH STEEL, we confirm that ASTM A572 Grade 65 steel plates are governed by ASTM A572/A572M. This specification covers high-strength low-alloy columbium-vanadium structural steel plates for riveted, bolted, or welded construction. SHH STEEL supplies plates in hot-rolled or controlled-rolled conditions. Thickness typically ranges from 6mm to 25mm (higher strength grades have thickness limitations), with widths up to 4600mm and lengths to 12000mm. Ultrasonic examination per ASTM A435 Class 1 and dual certification with EN or GB standards are available. All material is supplied with mill test certificates for complete traceability.

At SHH STEEL, we ensure the chemical composition of ASTM A572 Grade 65 is tightly controlled to achieve the highest strength while maintaining acceptable weldability. Carbon is limited to approximately 0.26%, manganese up to 1.65% in some thickness ranges, with phosphorus and sulfur kept very low. Microalloying with niobium and vanadium provides the necessary strength through grain refinement and precipitation hardening.

As a production and export expert at SHH STEEL, we assure you that ASTM A572 Grade 65 pressure vessel and structural steel plates deliver the highest mechanical properties in the A572 family. They are tested per ASTM A370. With a minimum yield strength of 450 MPa and tensile strength of 550 MPa minimum, these plates provide maximum load-bearing capacity. Elongation is typically 15% minimum in 8 inches or 17% in 2 inches.

SHH STEEL ensures ASTM A572 Gr.65 plates are delivered in optimal conditions. Standard delivery is hot-rolled or controlled-rolled. Normalized condition is available on request. Heat numbers provide full traceability. Our global logistics ensure timely delivery to international projects.

Precision is critical for ASTM A572 Gr.65 plates. SHH STEEL maintains strict tolerances per ASTM A6. Thickness tolerance follows standard rules for the applicable range. Width and length tolerances are ±10mm standard (±5mm custom). Flatness is typically 3mm per meter. EN 10029 tolerances are available for European projects.

ASTM A572 Gr.65 plates have good weldability for their high strength level when proper procedures are followed. Due to higher strength, preheat (typically 100-200°C depending on thickness) and low-hydrogen consumables are recommended. Supported processes include SMAW, GMAW, and SAW. Post-weld heat treatment may be beneficial in some cases. Testing includes bend tests and ultrasonic inspection for weld integrity.

Global equivalents for ASTM A572 Gr.65 facilitate international projects.

Supplementary requirements for ASTM A572 Gr.65 enhance performance for specialized high-strength applications. These include ultrasonic testing, Charpy impact testing at specified temperatures, and product analysis.

ASTM A572 Gr.65 plates are used in high-load structural applications where maximum strength is required.

SHH STEEL offers ASTM A572 Grade 65 plates with the highest strength in the A572 family. We provide custom sizes within specification limits, technical support for welding and fabrication, and reliable global supply backed by 15+ years of export experience to 50+ countries.

Advantage | Benefit | Keywords —|—|—|— Highest Strength Grade | Maximum load capacity in A572 family | A572 Gr.65 highest strength Technical Expertise | Welding guidance and material selection | A572 Gr.65 technical support Proven Global Supply | Zero major quality issues, full traceability | A572 Gr.65 trusted supplier

SHH STEEL’s ASTM A572 Grade 65 High-Strength Low-Alloy Steel Plates provide the highest strength available in the A572 family for demanding structural projects. With precise quality control, technical expertise, and global export capability, we deliver reliable, high-performance solutions for bridges, high-rise buildings, and heavy industry. Trust SHH STEEL for your A572 Gr.65 requirements.
