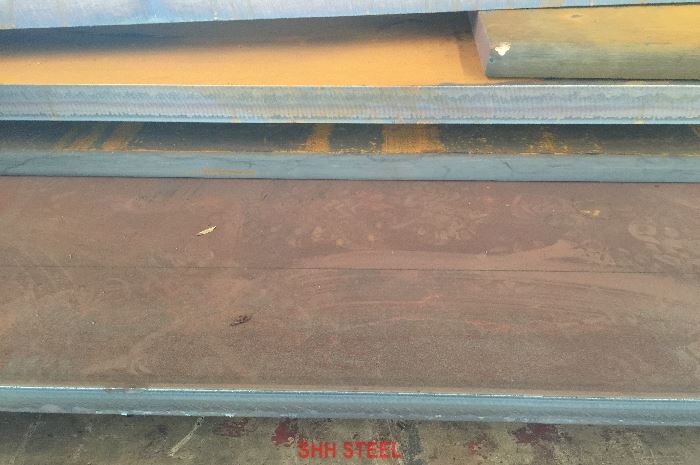

ASTM A572 Grade 50 (A572GR50) Structural Steel Plates

As a production and export expert at SHH STEEL, we’re pleased to present our ASTM A572 Grade 50 High-Strength Low-Alloy (HSLA) Steel Plates, also known as A572 Gr.50 or A572GR50. This versatile structural steel grade is designed for riveted, bolted, or welded construction in bridges, buildings, construction equipment, transmission towers, and heavy machinery frames.

It offers a minimum yield strength of 345 MPa and tensile strength of 450 MPa minimum, providing an excellent strength-to-weight ratio compared to mild steels. The microalloyed composition (niobium and vanadium) delivers consistent properties with good toughness and superior weldability. SHH STEEL supplies these plates in thicknesses from 6mm to 200mm (standard and custom), widths up to 4600mm maximum, and lengths up to 12000mm maximum, supporting large-scale structural projects worldwide.

The hot-rolled or controlled-rolled condition optimizes grain structure for reliable performance. For buyers exploring ASTM A572 Gr.50 properties or equivalents, this grade excels in cost-effective high-strength applications. Our plates undergo ultrasonic testing where required and are supplied with mill test certificates for full traceability and compliance with global standards.

With low carbon equivalent, A572 Gr.50 plates are highly weldable using common processes, minimizing preheat needs and reducing hydrogen cracking risk. SHH STEEL’s quality commitment ensures defect-free material suitable for critical infrastructure and industrial fabrication.

As a production and export expert at SHH STEEL, we confirm that ASTM A572 Grade 50 steel plates are governed by ASTM A572/A572M. This specification covers high-strength low-alloy columbium-vanadium structural steel plates intended for riveted, bolted, or welded construction of bridges, buildings, and other structures. SHH STEEL supplies plates in hot-rolled or controlled-rolled conditions (normalized available on request) to optimize mechanical properties. The specification supports thicknesses from 6mm to 200mm, widths up to 4600mm, and lengths to 12000mm, with custom dimensions available. Ultrasonic examination per ASTM A435 or equivalent detects laminations. Dual certification with EN 10025 or GB/T 1591 is offered for international compatibility. All material includes mill test certificates for complete traceability.

At SHH STEEL, the chemical composition of ASTM A572 Grade 50 is tightly controlled per ASTM A572/A572M. Carbon is limited to ≤0.23% (often lower for thinner plates), manganese ≤1.35%, with phosphorus and sulfur capped at 0.04% and 0.05%. Silicon ≤0.40%. Microalloying elements niobium (0.005-0.05%) and vanadium (0.01-0.15%) provide grain refinement and strength. Optional copper (≥0.20%) can be added for improved atmospheric corrosion resistance.

Low carbon equivalent (typically ≤0.40-0.45) ensures excellent weldability. Heat analysis and product analysis tolerances are maintained for consistency.

ASTM A572 Grade 50 plates deliver reliable structural performance. Minimum yield strength is 345 MPa (50 ksi), with tensile strength of 450 MPa (65 ksi) minimum. Elongation is typically 18% min in 8 inches or 21% in 2 inches (varies by thickness). The material offers good toughness for most structural environments. Modulus of elasticity is approximately 200 GPa.

SHH STEEL delivers ASTM A572 Gr.50 plates in hot-rolled or controlled-rolled conditions as standard (normalized or other heat treatments available on request). These conditions provide the required strength and toughness directly from the mill. Heat/lot numbers ensure full traceability. Efficient global transit (e.g., 3-7 days to many Asian destinations).

Strict tolerances per ASTM A6. Thickness tolerance follows standard plate rules. Width and length ±10mm standard (±5mm custom precision available). Flatness typically 3mm per meter or better. EN 10029 Class B or tighter tolerances supplied for European projects.

ASTM A572 Gr.50 offers excellent weldability due to low carbon and controlled microalloying. Common processes (SMAW, GMAW, FCAW, SAW) achieve high joint efficiency. Preheat of 50-150°C is recommended for thicker sections or high restraint. Low-hydrogen consumables are advised. Post-weld heat treatment is generally not required.

Global equivalents for ASTM A572 Gr.50 facilitate international projects and substitution.

Common options include Charpy V-Notch impact testing for low-temperature service, enhanced ultrasonic examination, and product analysis. SHH STEEL accommodates these per project specifications.

ASTM A572 Gr.50 is ideal for high-strength structural applications requiring good weldability and toughness.

SHH STEEL offers ASTM A572 Grade 50 plates with full certification, custom processing, and reliable global supply. Our 15+ years of experience includes zero major quality issues across 50+ countries, backed by SGS verification and complete mill test certificates.

Advantage | Benefit | Keywords —|—|—|— Certified Quality | ASTM A572 compliant + MTC 3.1/3.2 | A572 Gr.50 certified Custom Fabrication | Wide size range & value-added processing | A572 Gr.50 custom Global Reliability | Proven supply to 50+ countries | A572 Gr.50 trusted supplier

SHH STEEL’s ASTM A572 Grade 50 High-Strength Low-Alloy Steel Plates combine superior strength, weldability, and value for modern structural projects. With precise quality control, flexible dimensions (6-200mm thick), and strong global logistics, we deliver reliable solutions for bridges, buildings, and heavy industry. Trust SHH STEEL for your A572 Gr.50 requirements.
