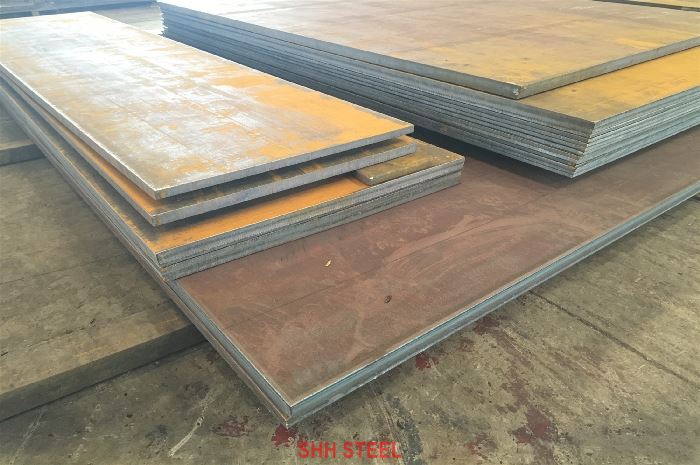

ASTM A572 Grade 60 (A572GR60) Structural Steel Plate supplier

As a production and export expert at SHH STEEL, we are pleased to present our ASTM A572 Grade 60 High-Strength Low-Alloy (HSLA) Steel Plates, also known as A572 Gr.60 or A572GR60. This grade offers significantly higher strength than A572 Gr.50 and Gr.55, making it ideal for heavy structural applications such as long-span bridges, high-rise buildings, heavy equipment frames, and industrial structures where maximum strength-to-weight efficiency is required.

It features a minimum yield strength of 415 MPa (60 ksi) and a minimum tensile strength of 520 MPa (75 ksi), with good ductility and weldability achieved through controlled microalloying. SHH STEEL supplies these plates in thicknesses typically from 6mm to 50mm (note: higher grades have thickness limitations per ASTM A572), with widths up to 4600mm and lengths up to 12000mm. Custom sizes are available within specification limits.

The controlled-rolled condition optimizes grain structure and mechanical properties. For buyers searching for ASTM A572 Gr.60 properties or equivalents, this grade provides excellent performance in high-load structural designs. Our plates undergo rigorous quality inspection and are supplied with mill test certificates for complete traceability.

With optimized chemistry, A572 Gr.60 maintains good weldability for structural fabrication when proper procedures are followed. SHH STEEL delivers consistent, high-quality material trusted by international clients for critical infrastructure projects.

ASTM A572 Grade 60 steel plates are governed by ASTM A572/A572M. This specification covers high-strength low-alloy columbium-vanadium structural steel plates for riveted, bolted, or welded construction. SHH STEEL supplies plates in hot-rolled or controlled-rolled conditions. Standard thicknesses range from 6mm to 50mm (subject to specification limits for higher strength grades), with widths up to 4600mm and lengths to 12000mm. Ultrasonic testing per ASTM A435 and dual certification options are available. All material includes mill test certificates for traceability.

At SHH STEEL, the chemical composition of ASTM A572 Grade 60 is carefully controlled to achieve higher strength while maintaining weldability. Carbon is limited (typically ≤0.26%), manganese up to 1.35%, with phosphorus and sulfur kept low. Microalloying elements (niobium and vanadium) provide the necessary strength through grain refinement and precipitation hardening.

ASTM A572 Grade 60 plates provide high strength for demanding structural use. Minimum yield strength is 415 MPa (60 ksi), with tensile strength of 520 MPa (75 ksi) minimum. Elongation is typically 16% minimum in 8 inches or 18% in 2 inches.

SHH STEEL delivers ASTM A572 Gr.60 plates in hot-rolled or controlled-rolled conditions as standard. Other heat treatments are available upon request within specification limits. Full heat/lot traceability is provided.

Tolerances comply with ASTM A6. Strict control on thickness, width, length, and flatness. Tighter European tolerances (EN 10029) available for precision projects.

ASTM A572 Gr.60 offers good weldability when proper procedures are used. Due to higher strength, preheat and low-hydrogen consumables are recommended, especially for thicker sections. Common processes include SMAW, GMAW, and SAW per AWS D1.1 guidelines.

Global equivalents for ASTM A572 Gr.60:

Options include Charpy impact testing, ultrasonic examination, and product analysis according to project specifications.

ASTM A572 Gr.60 is suitable for high-strength structural applications where greater load capacity is needed.

Application | Typical Use | Keywords —|—|—|— Bridges & Long-Span Structures | High load-bearing capacity | A572 Gr.60 bridge High-Rise Buildings & Towers | Strength-to-weight efficiency | A572 Gr.60 building Heavy Equipment & Industrial Frames | Superior durability | A572 Gr.60 equipment

SHH STEEL provides ASTM A572 Grade 60 plates with consistent quality, technical expertise, and reliable global supply. We support customers with certification, custom processing, and professional service.

Advantage | Benefit | Keywords —|—|—|— Certified Quality | ASTM A572 compliant + full MTC | A572 Gr.60 certified Technical Support | Welding guidance and material selection | A572 Gr.60 technical support Global Supply | Proven export experience to 50+ countries | A572 Gr.60 trusted supplier

SHH STEEL’s ASTM A572 Grade 60 High-Strength Low-Alloy Steel Plates provide superior strength and performance for demanding structural projects. With precise quality control, technical support, and global export capability, we deliver reliable solutions for bridges, buildings, and heavy industry. Contact SHH STEEL for your A572 Gr.60 requirements.
