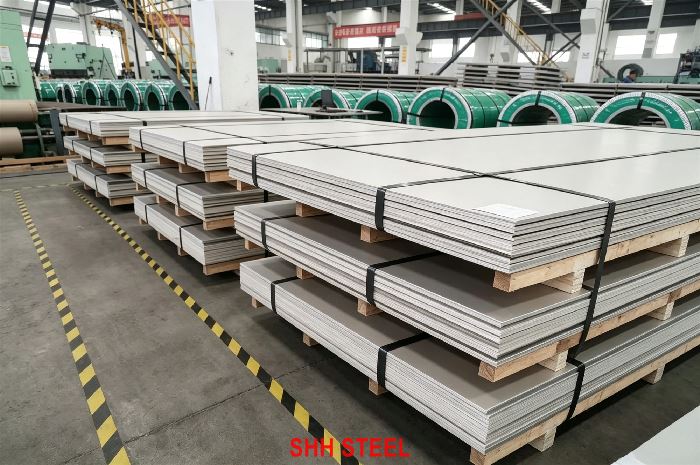

AISI 430 Stainless Steel Plate | A240 Type 430 | UNS S43000
What is AISI 430 Stainless Steel ?
As a professional China steel mill-Direct Supply and stainless steel plate supplier, SHH STEEL is pleased to present AISI 430 Stainless Steel Plate.
AISI 430 is widely known and searched under many different names and designations, including AISI 430, ASTM A240 Type 430, ASME SA240 Type 430, UNS S43000, 430 stainless steel, 430 stainless steel plate, SUS430, 1.4016, X6Cr17, 10Cr17 and 1Cr17. All these names refer to the same standard 16–18% chromium ferritic stainless steel.
AISI 430 is the workhorse ferritic grade. It contains 16.0–18.0% chromium with carbon limited to 0.12% and no mandatory nickel. The result is a magnetic, non-hardenable stainless steel with good resistance to atmosphere, fresh water, nitric acid and many food-contact environments, at a lower alloy cost than a240 304.
Typical uses include household appliances, kitchen equipment, automotive trim, interior architecture, heat-resistant fabrications and general industrial plate. AISI 430 is supplied annealed and is readily formed, polished and fabricated.
SHH STEEL supplies AISI 430 as true China steel mill-Direct Supply, sourcing directly from major Chinese stainless steel mills. This model delivers competitive mill pricing, consistent quality, complete heat traceability and reliable delivery. SHH STEEL offers AISI 430 in plate and sheet form across a practical range of thicknesses and surface finishes, including 2B, No.1, BA and No.4.
AISI 430 is frequently compared with A240 429, A240 434, A240 436, A240 439, A240 444 and A240 410S. SHH STEEL provides technical support to help customers choose the most appropriate 400-series grade.
Material Specification
| Specification Element | Requirement | SHH STEEL Compliance |
|---|---|---|
| Grade | AISI 430 / A240 Type 430 / UNS S43000 | Confirmed |
| Related Standards | ASTM A240, ASME SA240, JIS G4305 (SUS430), EN 1.4016 | Available |
| Product Form | Plate, Sheet | Available |
| Delivery Condition | Annealed | Standard |
| Thickness Range | 0.3 mm – 80 mm (thicker available on request) | Custom sizes supported |
| Width | Up to 1500–2000 mm | Available |
| Length | Up to 6000–12000 mm or coil / cut-to-length | Available |
| Surface Finish | 2B, No.1, BA, No.4, 2D | Available |
| Certification | EN 10204 3.1 / Mill Test Certificate | Available |
SHH STEEL can supply dual-certified ASTM A240 / ASME SA240 Type 430 material when required by the project.
Chemical Composition
Typical Chemical Composition of AISI 430 (UNS S43000):
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.12 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 16.00 – 18.00 |
| Nickel (Ni) | ≤ 0.75 |
| Iron (Fe) | Balance |
The defining feature of AISI 430 is 16–18% chromium without required nickel or molybdenum. This chemistry provides a stable ferritic structure, magnetism, good oxidation resistance and useful corrosion resistance in mild environments. SHH STEEL carefully controls chromium and carbon to keep AISI 430 consistent for forming, polishing and welding.
Mechanical Properties
Annealed Condition (typical ASTM A240 values)
| Property | Value |
|---|---|
| Tensile Strength | ≥ 450 MPa (65 ksi) |
| Yield Strength (0.2%) | ≥ 205 MPa (30 ksi) |
| Elongation (in 50 mm) | ≥ 22% |
| Hardness | ≤ 183 HBW / 89 HRBW |
AISI 430 is supplied annealed, with moderate strength and good ductility for bending, drawing and fabrication. It is magnetic and cannot be hardened by conventional quench and temper. SHH STEEL supplies AISI 430 meeting A240 mechanical limits.
Physical Properties
Density is approximately 7.70–7.75 g/cm³. Melting range is approximately 1425–1510°C.
Material Comparison
| rade | UNS | Cr (%) | Extra Alloy | Corrosion / Use | Typical Preference |
|---|---|---|---|---|---|
| AISI 410S | S41008 | 11.5–13.5 | Low carbon | Lower | Welded 12% Cr constructions |
| AISI 429 | S42900 | 14.0–16.0 | — | Medium | Intermediate ferritic plate |
| AISI 430 | S43000 | 16.0–18.0 | — | Standard ferritic | Appliances, trim, general fabrication |
| AISI 434 | S43400 | 16.0–18.0 | Molybdenum | Better pitting | Automotive trim / chloride atmospheres |
| AISI 439 | S43035 | 17.0–19.0 | Titanium | Better welded oxidation | Exhaust and welded ferritic service |
| AISI 444 | S44400 | 17.5–19.5 | Mo + Ti/Nb | Better chloride ferritic | Water tanks / higher chloride ferritic |
AISI 430 is the standard ferritic choice for cost-effective corrosion resistance and appearance. When molybdenum is needed for better pitting resistance, SHH STEEL recommends A240 434 or A240 444. For welded high-temperature ferritic service, compare with A240 439.
Corrosion Resistance
AISI 430 offers good resistance to atmosphere, fresh water, nitric acid, many food products and household chemicals. It is widely used for indoor architectural and appliance surfaces because it polishes well and resists fingerprint staining better than carbon steel.
In chlorides, coastal atmospheres or strong reducing acids, AISI 430 can suffer pitting or rust staining. For those conditions SHH STEEL recommends a240 304, a240 316l, A240 434 or A240 444.
Weldability
AISI 430 can be welded by standard fusion methods. Matching 430 or 439-type filler metals are commonly used. As with other ferritic grades, heat input should be controlled to limit grain growth in the heat-affected zone.
Heavy welded sections may lose toughness if overheated. For critical welded fabrications, SHH STEEL often recommends titanium-stabilized A240 439. Proper welding procedures and post-weld cleaning are required to restore corrosion resistance.
Heat Treatment
AISI 430 is normally supplied in the annealed condition by SHH STEEL.
Annealing restores ductility after cold forming and optimizes corrosion resistance. The grade cannot be hardened by conventional quench and temper. SHH STEEL controls heat treatment so AISI 430 remains formable, polishable and weldable.
Surface Finishes
| Finish | Description | Typical Use / Keywords |
|---|---|---|
| 2B | Cold-rolled, annealed, pickled, skin-passed | AISI 430 2B – most common for sheet and thin plate |
| No.1 | Hot-rolled, annealed and pickled | AISI 430 No.1 / A240 430 No.1 – industrial plate |
| BA | Bright Annealed | AISI 430 BA – appliances and decorative surfaces |
| No.4 | Brushed finish | AISI 430 No.4 – kitchen and architectural surfaces |
| 2D | Cold-rolled, annealed and pickled | AISI 430 2D – forming applications |
SHH STEEL regularly supplies AISI 430 in 2B, No.1, BA and No.4 finishes.
Tolerances
Dimensional tolerances for AISI 430 Stainless Steel Plate supplied by SHH STEEL generally conform to ASTM A480 practices.
Typical available size range is thickness 0.3 mm – 80 mm, width up to 1500–2000 mm, and length up to 6000–12000 mm or coil/cut-to-length. SHH STEEL provides precise dimensional control and can support tighter tolerances when required.
Equivalent Material Grades
| Grade / Designation | Standard / Region | Notes |
|---|---|---|
| AISI 430 | AISI | Main commercial keyword |
| A240 Type 430 | ASTM A240 / ASME SA240 | Plate specification |
| UNS S43000 | Unified Numbering System | Primary UNS designation |
| 1.4016 / X6Cr17 | EN (Europe) | European equivalent |
| SUS430 | JIS G4304 / G4305 (Japan) | Japanese equivalent |
| 10Cr17 / 1Cr17 | GB/T (China) | Chinese equivalents |
| Related 429 / 434 / 439 | Multiple | Nearby ferritic variants |
Related grades for comparison include A240 429, A240 434, A240 436, A240 439, A240 444 and A240 410S.
Applications
AISI 430 is selected for cost-effective ferritic fabrications that need good appearance and moderate corrosion resistance. Typical applications of AISI 430 include:
| Industry / Sector | Typical Components / Equipment (with keywords) |
|---|---|
| Household Appliances | AISI 430 washing-machine panels, refrigerator parts and housings |
| Kitchen & Food Equipment | AISI 430 sinks, tabletops, No.4 panels and fabricated parts |
| Automotive | AISI 430 trim, decorative and heat-resistant components |
| Architecture & Interior | AISI 430 BA / No.4 wall panels and decorative fabrications |
| General Fabrication | AISI 430 tanks, covers, frames and stamped parts |
| Industrial Equipment | AISI 430 No.1 plate for welded ferritic constructions |
SHH STEEL supplies AISI 430 for these applications with consistent quality. For related industry solutions, see our equipment manufacturing, construction industry and machinery industry pages. Supporting services include stainless surface finishing services, steel cutting services and steel welding services.
Why Choose SHH STEEL
SHH STEEL is a China steel mill-Direct Supply specializing in stainless steel plate and sheet. By working directly with major Chinese stainless steel mills, SHH STEEL supplies AISI 430 with the following advantages:
- Genuine China steel mill-Direct Supply pricing
- Consistent quality and complete heat traceability
- Full Mill Test Certificates (EN 10204 3.1)
- Standard 16–18% Cr AISI 430 material for appliances, trim and general fabrication
- Flexible dimensions and surface finishes (including AISI 430 2B, AISI 430 BA, AISI 430 No.4 and AISI 430 No.1)
- Technical support for selection among AISI 429, 430, 434, 439 and 444
- Value-added services including stainless surface finishing services, steel cutting services, steel welding services and worldwide shipping service
For more information about our company and full product range, please visit China steel Mill Agent-SHH STEEL.
FAQ
- What are the other common names for AISI 430?AISI 430 is also known as ASTM A240 Type 430, UNS S43000, SUS430, 1.4016, X6Cr17, 10Cr17 and 1Cr17. SHH STEEL can certify the required designation.
- What is the difference between AISI 430 and AISI 304?430 is a magnetic ferritic grade with no required nickel. 304 is a non-magnetic austenitic grade with nickel and better chloride resistance. SHH STEEL recommends 430 for indoor appliances and trim, and 304 when corrosion resistance is more critical.
- What is the difference between AISI 430 and AISI 434 or 439?434 adds molybdenum for better pitting resistance. 439 adds titanium for better welded and high-temperature performance. SHH STEEL can help select the correct 400-series grade.
- Is AISI 430 magnetic?es. AISI 430 is ferritic and remains magnetic in the annealed condition.
- What is the density of AISI 430?Approximately 7.70–7.75 g/cm³. SHH STEEL provides mill certificates confirming chemistry and mechanical properties.
- Can AISI 430 be used outdoors or near the sea?Only in mild inland atmospheres. Coastal or chloride environments can cause rust staining. SHH STEEL recommends 304, 316L, 434 or 444 for outdoor or marine-related service.
- Does SHH STEEL supply dual-certified ASTM A240 Type 430 / AISI 430 material?Yes, SHH STEEL commonly supplies dual-certified material upon request.
Conclusion
AISI 430 Stainless Steel Plate is the standard 16–18% chromium ferritic grade for appliances, kitchen equipment, automotive trim, interior architecture and general fabrication. It offers a practical balance of corrosion resistance, appearance, formability and cost.
As a professional China steel mill-Direct Supply, SHH STEEL provides high-quality AISI 430 Stainless Steel Plate with competitive pricing, full certification and complete technical support.
Contact SHH STEEL today for stock availability, surface finish options (including AISI 430 2B, AISI 430 BA, AISI 430 No.4 and AISI 430 No.1), or a competitive quotation.
AISI 430 Stainless Steel Plate, AISI 430, A240 Type 430, UNS S43000, 430 China steel mill-Direct Supply, SUS430, 1.4016, AISI 430 supplier
