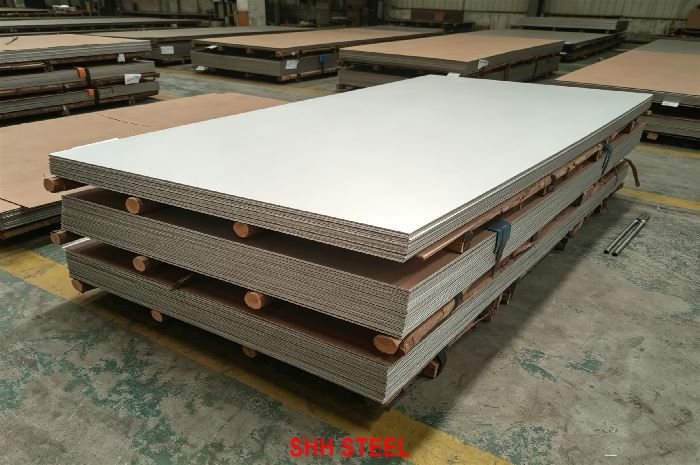

JIS G4305 SUS436L Steel Plate | 436L BA/2B Stainless Steel
General Description
As a professional stainless steel supplier and China Mill-Direct Exporter, SHH STEEL is pleased to present JIS G4305 SUS436L Steel Plate (also known as 436L stainless steel).
SUS436L is a low-carbon ferritic stainless steel under the Japanese standard JIS G4305 for cold-rolled stainless steel plates, sheets and strips. It contains chromium and molybdenum, with very low carbon content, providing significantly better resistance to pitting and general corrosion than standard 430, while offering improved weldability and formability. It is fully magnetic and serves as a cost-effective high-performance ferritic grade for many applications. The most common surface finishes are 2B and BA.
SHH STEEL supplies SUS436L as Mill Direct Supply, sourcing directly from major Chinese stainless steel mills. This ensures competitive mill pricing, consistent quality, shorter lead times and full traceability. We offer thicknesses from 0.3 mm to 3.0 mm, widths up to 1500 mm, in coil or cut-to-length form. All materials are delivered with full Mill Test Certificates.
Material Specification
| Specification Element | Requirement | SHH STEEL Compliance |
|---|---|---|
| Primary Standard | JIS G4305 | Full compliance |
| Steel Grade | SUS436L | Confirmed |
| Product Form | Cold-rolled Plate / Sheet / Coil | Available |
| Surface Finish | 2B, BA (main) | Available |
| Thickness Range | 0.3 mm – 3.0 mm | Custom sizes available |
| Width | Up to 1500 mm | Available |
| Certification | EN 10204 3.1 / Mill Certificate | Available |
Chemical Composition
Chemical composition according to JIS G4305 (Heat Analysis – typical for SUS436L):
| Element | Content (%) |
|---|---|
| Carbon (C) | ≤ 0.025 |
| Silicon (Si) | ≤ 1.00 |
| Manganese (Mn) | ≤ 1.00 |
| Phosphorus (P) | ≤ 0.040 |
| Sulfur (S) | ≤ 0.030 |
| Chromium (Cr) | 16.00 – 19.00 |
| Molybdenum (Mo) | 0.75 – 1.50 |
| Nickel (Ni) | ≤ 0.60 |
| Titanium / Niobium | Stabilizing elements (as required) |
Note: The combination of low carbon and molybdenum addition provides superior corrosion resistance and weldability compared with standard 430 and 434 grades.
Mechanical Properties
Mechanical properties of JIS G4305 SUS436L (annealed condition):
| Property | Value |
|---|---|
| Yield Strength (0.2%) | ≥ 245 MPa |
| Tensile Strength | ≥ 410 MPa |
| Elongation | ≥ 20% |
| Hardness | ≤ 217 HB |
Density: Approximately 7.70 g/cm³ Magnetic: Yes (ferritic)
Surface Finishes
| Finish | Description | Typical Applications |
|---|---|---|
| 2B | Cold-rolled, annealed, pickled, skin-passed – smooth matte finish | General fabrication, automotive, industrial |
| BA | Bright Annealed – high reflectivity | Decorative, kitchen and clean applications |
SHH STEEL mainly supplies 2B and BA finishes for SUS436L.
Delivery Conditions
SHH STEEL supplies JIS G4305 SUS436L as Mill Direct Supply in cold-rolled annealed condition with 2B or BA finish.
Additional options available:
- Coil or cut-to-length sheets
- Protective film
- Third-party inspection (SGS, BV, TUV, etc.)
Key Characteristics
- Excellent pitting and general corrosion resistance due to Mo + low carbon
- Superior weldability among ferritic stainless steels
- Good formability
- Fully magnetic
- Better performance than SUS430 and SUS434 in many environments
- Cost-effective alternative to some austenitic grades
Equivalent Material Grades
| Grade | Standard | Notes |
|---|---|---|
| SUS436L | JIS G4305 | — |
| 436 / 436L | ASTM A240 | American related grades |
| 1.4526 / X6CrMoNb17-1 | EN 10088-2 | Closest European equivalent |
| Related Mo-bearing ferritic | GB/T 3280 | Chinese equivalents |
| UNS S43600 | — | Related Unified Numbering |
Applications
JIS G4305 SUS436L (436L BA/2B) is used in applications requiring higher corrosion resistance and good fabricability. Typical applications include:
| Application Area | Typical Components / Uses (Keywords) |
|---|---|
| Automotive | Exhaust systems, mufflers, heat shields – 436L Automotive |
| Kitchen & Appliance | Higher-performance kitchen equipment – 436L BA Kitchen |
| Architectural & Decorative | Exterior panels, cladding – 436L BA Decorative |
| Industrial Equipment | Parts exposed to mild-to-moderate corrosive environments – 436L Industrial |
| Heat-Resistant Applications | Furnace and exhaust components – 436L Heat Resistant |
| General Fabrication | Formed and welded parts – 436L Fabrication |
Why Choose SHH STEEL
SHH STEEL provides SUS436L as Mill Direct Supply. We maintain long-term strategic cooperation with major Chinese stainless steel mills and act as a first-level agent. This direct mill supply model allows us to offer competitive mill-direct pricing, faster delivery times, consistent surface quality (especially for BA and 2B finishes), and full Mill Test Certificates for JIS G4305 SUS436L Steel Plate.
Customers benefit from reliable supply, short lead times and cost-effective solutions for high-performance ferritic stainless steel projects. Our professional export team provides technical support on material selection, surface finishes and processing.
FAQ
- What is the main advantage of SUS436L over SUS430 and SUS434?SUS436L has lower carbon and optimized molybdenum content, providing better corrosion resistance, improved weldability and superior formability.
- What is the density of SUS436L?Approximately 7.70 g/cm³.
Conclusion
JIS G4305 SUS436L Steel Plate (436L BA/2B Stainless Steel) from SHH STEEL is a high-performance low-carbon molybdenum-bearing ferritic stainless steel offering excellent corrosion resistance, good weldability and formability. As Mill Direct Supply, we provide competitive pricing, consistent quality and full technical support. Trust SHH STEEL for your SUS436L stainless steel requirements.
Contact SHH STEEL today for stock availability, pricing and technical support. JIS G4305 SUS436L Steel Plate, SUS436L, 436L BA, 436L 2B, 436L stainless steel plate, SUS436L supplier
