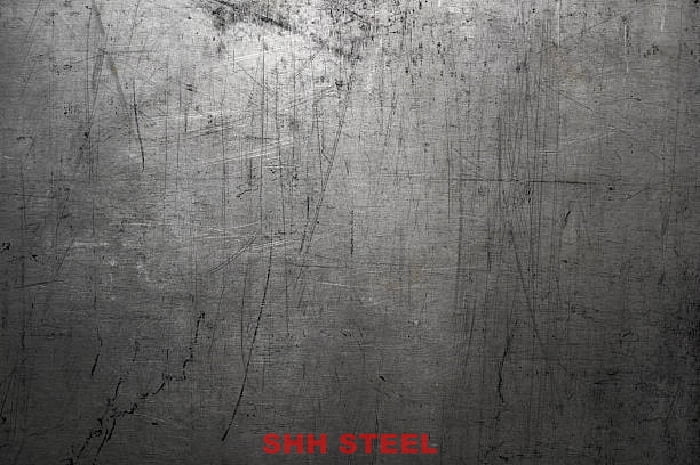

ASTM A516 GR 60 (ASTM A516GR60) Carbon Steel Plates

As an expert at SHH STEEL, I’m proud to introduce our ASTM A516 Grade 60 Carbon Steel Plates, also known as ASTM A516GR60 or ASTM A516 GR 60. These plates are a go-to choice for pressure vessels and boilers, offering a robust balance of strength and weldability. With a tensile strength of 415-550 MPa and a minimum yield strength of 220 MPa, they’re designed to handle pressures up to 300 bar and temperatures around 400°C, meeting ASME Section VIII standards. SHH STEEL, a leading carbon steel exporter, supplies these plates in thicknesses from 5mm to 500mm, with widths up to 4600mm and lengths to 12000mm, catering to a wide range of industrial needs.

The normalized condition of these plates improves grain structure, enhancing toughness and ductility, which is crucial for welded constructions in harsh environments. Whether you’re building a boiler or a storage tank, ASTM A 516 GR 60 plates deliver reliable performance. Our rigorous testing, including ultrasonic inspection, ensures every plate meets quality expectations. For those exploring related grades, check out our ASTM A516/A516M steel plate series.

For more other grade, please check in the following: ASTM A 516/A 516M, ASTM A 516 GR 70, ASTM A 516 GR 65, ASTM A 516 GR 60 and ASTM A 516 gr 55 Steel Grade.

As an SEO and production expert at SHH STEEL, I can confirm that ASTM A516 Grade 60 carbon steel plates are governed by ASTM A516/A516M-17, a standard for pressure vessel steel, and comply with ASME Section II Part A (SA-516 Gr.60) for boiler and pressure vessel codes. This specification outlines requirements for mechanical properties and testing, ensuring suitability for welded pressure vessels operating at moderate temperatures. SHH STEEL provides plates in normalized or stress-relieved conditions, optimizing performance for thicknesses from 5mm to 500mm, with widths up to 4600mm and lengths to 12000mm.

Ultrasonic testing per ASTM A435 or A577 detects laminations, guaranteeing defect-free material, while dual certification with EN 10028-2 or GB/T 713 supports international use. Our mill test certificates (MTCs per EN 10204 3.1) ensure traceability, making ASTM A516 GR 60 a trusted choice for global buyers. For more details on our range, visit our ASTM A516/A516M steel plate page.

At SHH STEEL, we ensure the chemical composition of ASTM A516 Grade 60 is tightly controlled per ASTM A516/A516M-17 to guarantee weldability and toughness. The maximum carbon content is 0.23%, preventing brittleness, while manganese (0.60-1.20%) boosts strength. Phosphorus and sulfur are capped at 0.035% each to minimize cracking, and silicon (0.15-0.40%) supports deoxidation. Optional vanadium (≤0.02%) refines grains for improved impact resistance. Our testing per ASTM E350 maintains a Carbon Equivalent (CE) ≤0.40 per AWS D1.1, ensuring excellent weld performance for buyers seeking “ASTM A516 GR 60 chemical composition.”

As an expert at SHH STEEL, I can assure you that ASTM A516 Grade 60 carbon steel plates deliver strong mechanical properties, tested per ASTM E8 for tensile/yield, ASTM E23 for impact, and ASTM E466 for fatigue. With a minimum yield strength of 220 MPa and tensile range of 415-550 MPa, these plates support high load-bearing capacity, while 21% elongation ensures ductility for forming. The impact energy of 27J at -20°C prevents brittle failure, and the modulus of elasticity (200 GPa per ASTM E111) provides structural stability. The fatigue limit (230 MPa est. per ASTM E466) varies with surface finish, optimized by our grinding process. This makes ASTM A516 GR 60 plates a reliable choice for buyers searching for “ASTM A516 GR 60 mechanical properties.”

SHH STEEL ensures ASTM A516 GR 60 carbon steel plates are delivered in optimal conditions to suit pressure vessel needs. We offer as-rolled, normalized (900-950°C), or stress-relieved (620-650°C) options per ASTM A20/A20M, with quenched and tempered conditions available for enhanced toughness. Normalized plates refine grain structure for improved impact resistance, ideal for boilers up to 400°C. Stress-relieved plates reduce residual stresses for welded structures, while quenched and tempered (870-900°C quench, 650°C temper) suits wear applications. Heat numbers provide traceability, and our global transit time, especially 3-7 days to Asia, ensures timely delivery.

Precision is key for ASTM A516 GR 60 carbon steel plates, and SHH STEEL maintains strict tolerances per ASTM A6/A6M to ensure seamless fabrication. Thickness tolerance is ±1.5mm for plates under 40mm and ±2.0mm for thicker sections up to 200mm (custom 300mm). Width and length tolerances are ±10mm standard, with ±5mm available for precision orders up to 4600mm width and 12000mm length. Surface flatness is controlled at 3mm per meter, per ASTM A6, to prevent warping during welding or heat treatment. For European projects, EN 10029 Class B tolerances are offered, enhancing compatibility.

ASTM A516 GR 60 carbon steel plates are highly weldable due to low carbon (≤0.23%) and CE ≤0.40 per AWS D1.1, making them ideal for multi-pass welding in pressure vessels. SHH STEEL recommends preheating at 150-200°C for thicknesses over 25mm to prevent hydrogen-induced cracking, with post-weld heat treatment (PWHT) at 620-650°C for stress relief. Supported processes include GTAW, SMAW, and GMAW with E7018 filler (AWS A5.1), achieving 90-95% joint efficiency per ASME Section IX. Low sulfur (≤0.035%) reduces hot shortness, and 21% elongation ensures ductility. Testing includes bend tests (ASTM E190) for 3t radius and ultrasonic inspection per ASTM A435 for weld integrity.

Global equivalents for ASTM A516 Gr.60 facilitate international projects, offering similar tensile and yield properties for pressure vessel use.

Supplementary requirements for ASTM A516 GR 60 carbon steel plates enhance performance for specialized applications, offering buyers tailored options. These include ultrasonic testing (Class 1 per ASTM A435 for no laminations >0.25% thickness), Charpy impact at -50°C (27J min per ASTM A20 for cold service), and heat analysis per heat number (ASTM E350 for traceability). Product analysis allows ±0.02% tolerance on elements, while shot blasting to Sa 2.5 (50-100μm profile per ISO 8501-1) is available for surface preparation. SHH STEEL provides these to meet stringent needs, as buyers search for “A516 Gr.60 supplementary requirements.”

ASTM A516 GR 60 carbon steel plates are versatile for moderate-pressure and temperature environments, with excellent strength and toughness.

Details: Pressure vessels benefit from 415-550 MPa tensile at 400°C, while boilers handle 350°C with 21% elongation for forming. Storage tanks use 5-30mm plates for 50 bar, and oil & gas equipment leverages 30-120mm for 250 bar with NACE compliance. Heat exchangers utilize 10-40mm plates for 150 bar at 250°C, per TEMA standards for efficient heat transfer.

SHH STEEL offers ASME and ASTM-certified A516 Gr.60 plates, with custom thicknesses up to 300mm and heat treatments tailored to your project. Our 15-year track record includes zero defect deliveries to 50+ countries, backed by SGS verification and mill test certificates.

SHH STEEL’s ASTM A516 Gr.60 Carbon Steel Plates deliver reliable strength and weldability for pressure vessels and boilers. With precise tolerances and global equivalents, we offer customized solutions. Trust SHH STEEL for your steel needs—explore our ASTM A 516 Gr 60 page for more details.
